S-8223A - Battery Protection

ABLIC

Key Features

High-accuracy voltage detection circuit for each cell Overcharge detection voltage n (n = 1 to 3) 3.600 V to 4.700 V (50 mV step) Accuracy 20 mV (Ta = 25C) Overcharge hysteresis voltage n (n = 1 to 3).
1 Accuracy 25 mV (Ta = 10C to 60C) 0.0 mV to 550 mV (50 mV step) 300 mV to 550 mV Accuracy 20% 100 mV to 250 mV Accuracy 50 mV 50 mV Accuracy 25 mV 0.0 mV Accuracy 25.

S-8223A battery protection by ABLIC - Datasheet Preview

Datasheet Details

Part number	S-8223A
Manufacturer	ABLIC
File Size	790.79 KB
Description	Battery Protection
Datasheet	S-8223A Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
S-8225A	BATTERY MONITORING IC	Seiko Instruments
S-8225B	BATTERY MONITORING IC	Seiko Instruments
S-8200A	BATTERY PROTECTION IC	Seiko Instruments
S-8201	Battery Protection IC	Seiko Instruments
S-8204A	BATTERY PROTECTION IC	Seiko

Other Datasheets by ABLIC

Part Number	Description
S-8223B	Battery Protection
S-8223C	Battery Protection
S-8223D	Battery Protection
S-8224A	Battery Protection
S-8224B	Battery Protection

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

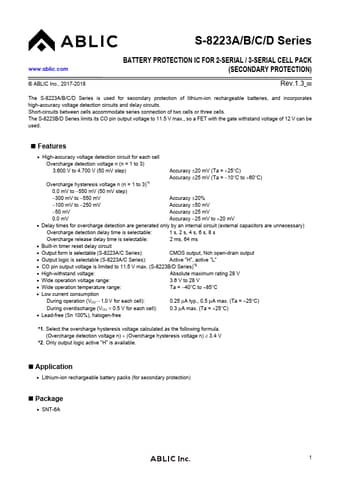

S-8223A/B/C/D Series www.ablicinc.com © ABLIC Inc., 2017 BATTERY PROTECTION IC FOR 2-SERIAL / 3-SERIAL CELL PACK (SECONDARY PROTECTION) Rev.1.2_01 The S-8223A/B/C/D Series is used for secondary protection of lithium-ion rechargeable batteries, and incorporates high-accuracy voltage detection circuits and delay circuits. Short-circuits between cells accommodate series connection of two cells or three cells. The S-8223B/D Series limits its CO pin output voltage to 11.5 V max., so a FET with the gate withstand voltage of 12 V can be used.  Features  High-accuracy voltage detection circuit for each cell Overcharge detection voltage n (n = 1 to 3) 3.600 V to 4.
