S-5719 - HALL EFFECT SWITCH IC

ABLIC

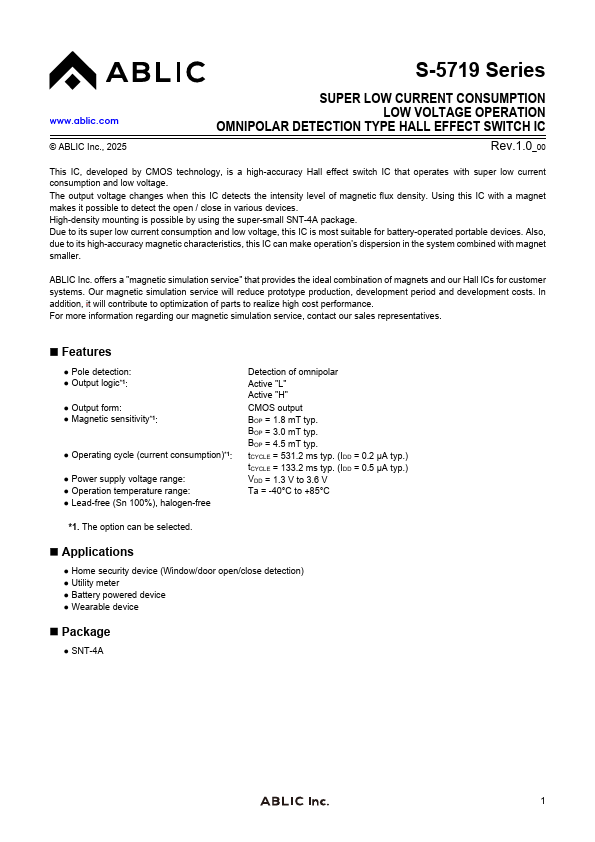

S-5719 Datasheet Preview — Preview of S-5719 PDF

Datasheet Details

Part number	S-5719
Manufacturer	ABLIC ↗
File Size	849.45 KB
Description	HALL EFFECT SWITCH IC
Datasheet	S-5719-ABLIC.pdf

S-5719 Product details

Description

Power supply pin GND pin No connection Output pin 1. Absolute Maximum Ratings Table 4 (Ta = +25°C unless otherwise specified) Item Symbol Applicable Pin Absolute Maximum Rating Unit Power supply voltage VDD - VSS - 0.3 to VSS + 7.0 V Output current IOUT OUT ±1.0 mA Output voltage VOUT OUT VSS - 0.3 to VDD + 0.3 V Operation ambient temperature Topr - -40 to +85 °C Stor

Features

Pole detection:.
Output logic.
1:.
Output form:.
Magnetic sensitivity.
1:.
Operating cycle (current consumption).
1:.
Power supply voltage range:.
Operation temperature range:.
Lead-free (Sn 100%), halogen-free Detection of omnipolar Active "L" Active "H" CMOS output BOP = 1.8 mT typ. BOP = 3.0 mT typ. BOP = 4.5 mT typ. tCYCLE = 531.2 ms typ. (IDD = 0.2 µA typ. ) tCYCLE = 133.2 ms typ. (IDD = 0.5 µA typ. ) VDD = 1.3 V to 3.6 V Ta = -40°C to +85°C.
