5SDD54N4000 Datasheet - ABB

5SDD54N4000 Rectifier Diode

VRSM IF(AV)M IF(RMS) IFSM VF0 rF = = = = = = 4000 5200 8200 85×103 0.8 0.086 V A A A V mΩ Rectifier Diode 5SDD 54N4000 Doc. No. 5SYA1171-00 Dec. 03 Patented free-floating silicon technology Very low on-state losses Optimum www.DataSheet4U.com power handling capability Blocking Maximum rated values 1) Parameter Repetitive peak reverse voltage Symbol Conditions VRRM f = 50 Hz, tp = 10ms, Tj = 0150°C f = 5 Hz, tp = 10ms, Tj = 0150°C Value 3600 4000 Unit V V .

5SDD54N4000 Datasheet (392.46 KB)

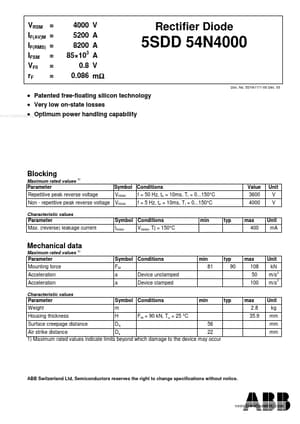

Preview of 5SDD54N4000 PDF
5SDD54N4000 Datasheet Preview Page 2 5SDD54N4000 Datasheet Preview Page 3

Datasheet Details

Part number:

5SDD54N4000

Manufacturer:

ABB

File Size:

392.46 KB

Description:

Rectifier diode.
