AAT1275 Boost Converter

AAT1275 Description

Boost Converter with USB Power Switch General .
The AAT1275 SwitchReg is a 2MHz, 500mA synchronous boost converter with an integrated currentlimiting load switch controlled output.

AAT1275 Features

* SwitchReg™ High Frequency Boost With 5V / 500mA Output Capability From a Single-Cell LithiumIon/Polymer Battery Input Voltage Range: 2.7V to 5V VOUT1 Adjustable or Fixe

AAT1275 Applications

* in portable consumer electronic products. The AAT1275 can support both USB 2.0 host port and USB on-the-go operation, as well as general purpose applications where a 5V supply with a user programmable current limit is needed. The high efficiency boost converter section of the AAT1275 is typically se

📥 Download Datasheet

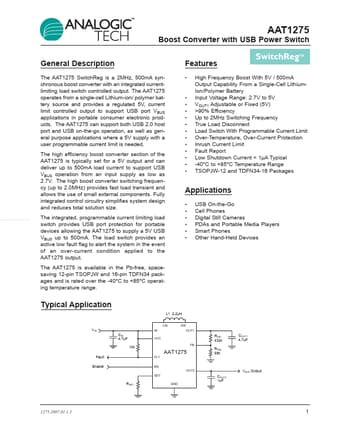

Preview of AAT1275 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT1275
Manufacturer
AAT
File Size
497.69 KB
Datasheet
AAT1275_AAT.pdf
Description
Boost Converter
