AAT1270 1A Step-Up Current Regulator

AAT1270 Description

www.DataSheet4U.com AAT1270 1A Step-Up Current Regulator for Flash LEDs General .
The AAT1270 is a high-efficiency, high-current boost converter capable of 1A maximum output current.

AAT1270 Features

* Input Voltage Range: 2.7V to 5.5V
* Dual Channel Output
* Up to 1A Regulated Output Current (0.5A per Channel)
* Up to 85% Efficiency with Small Magnetics
* 2 MHz Switching Frequency
* Separate Flash Enable Input
* Separate Flash Inhibit Inpu

AAT1270 Applications

* in all single-cell Lithium-ion / polymer battery operated products. The AAT1270 maintains output current regulation by switching the internal high-side and low-side switch transistors. The transistor switches are pulse-width modulated at a fixed frequency of 2MHz. The high switching frequency allows

📥 Download Datasheet

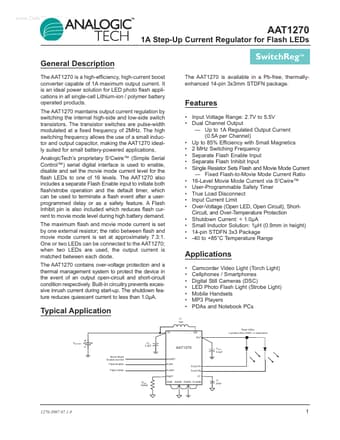

Preview of AAT1270 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT1270
Manufacturer
AAT
File Size
748.80 KB
Datasheet
AAT1270_AAT.pdf
Description
1A Step-Up Current Regulator
