TP2434, TP2431 Datasheet - 3Peak

TP2434 1.6MHz Bandwidth Micropower Low Noise Op-amps

* Low Noise: 13nV/√Hz(f= 1kHz) * Supply Current: 190μA/ch * Offset Voltage: 1 mV (max) * Low THD+N: 0.0005% * Supply Range: 2.2V to 5.5V * Low Input Bias Current: 0.3pA Typical * EMIRR IN+: 85 dB( under 2.4GHz) * Slew Rate: 0.9 V/μs * Gain-bandwidth Product: 1.6M.

TP2431-3Peak.pdf

This datasheet PDF includes multiple part numbers: TP2434, TP2431. Please refer to the document for exact specifications by model.

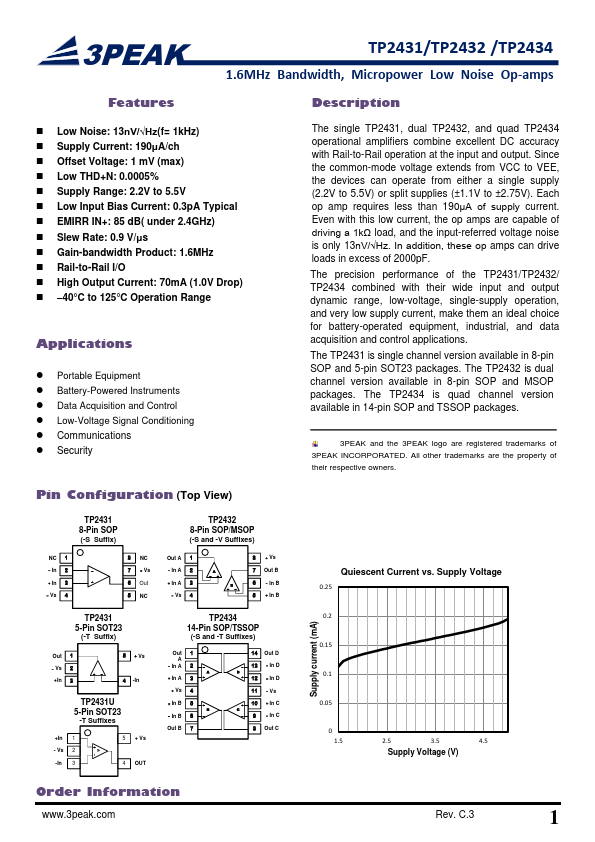

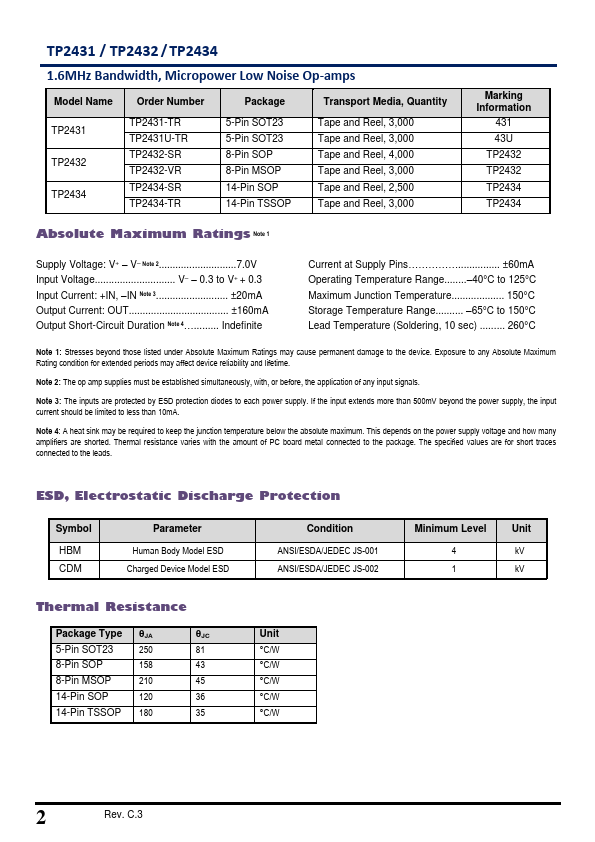

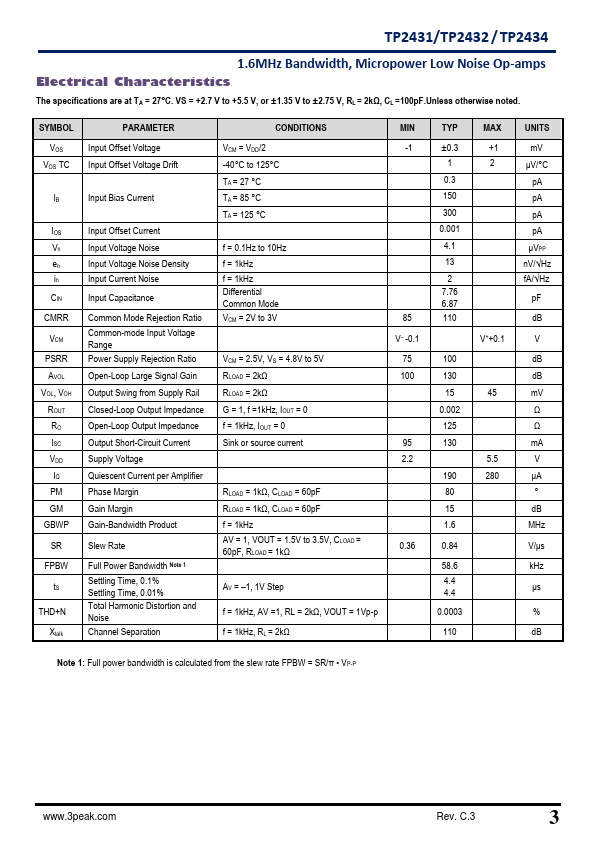

TP2434 Datasheet Preview Page 2 TP2434 Datasheet Preview Page 3

Datasheet Details

Part number:

TP2434, TP2431

Manufacturer:

3Peak

File Size:

690.78 KB

Description:

1.6mhz bandwidth micropower low noise op-amps.

Note:

This datasheet PDF includes multiple part numbers: TP2434, TP2431.
Please refer to the document for exact specifications by model.
