TP2432, TP2431 1.6MHz Bandwidth Micropower Low Noise Op-amps

TP2432 Description

3PEAK TP2431/TP2432 /TP2434 1.6MHz Bandwidth, Micropower Low Noise Op-amps .
Low Noise: 13nV/√Hz(f= 1kHz). Supply Current: 190μA/ch. Offset Voltage: 1 mV (max). Low THD+N: 0. Supply Range: 2.

TP2432 Applications

* Portable Equipment
* Battery-Powered Instruments
* Data Acquisition and Control
* Low-Voltage Signal Conditioning
* Communications
* Security The single TP2431, dual TP2432, and quad TP2434 operational amplifiers combine excellent DC accuracy with Rail-to-Rail operation at

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TP2432, TP2431. Please refer to the document for exact specifications by model.

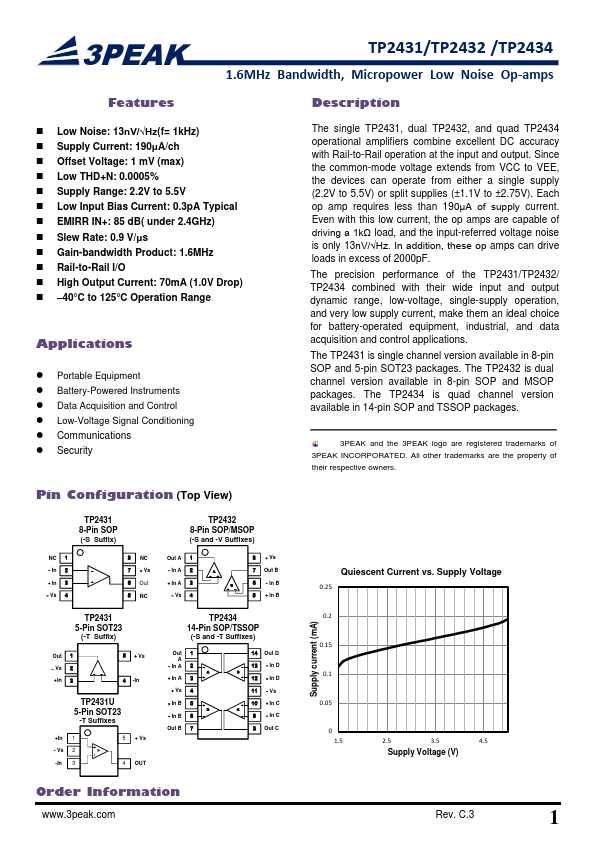

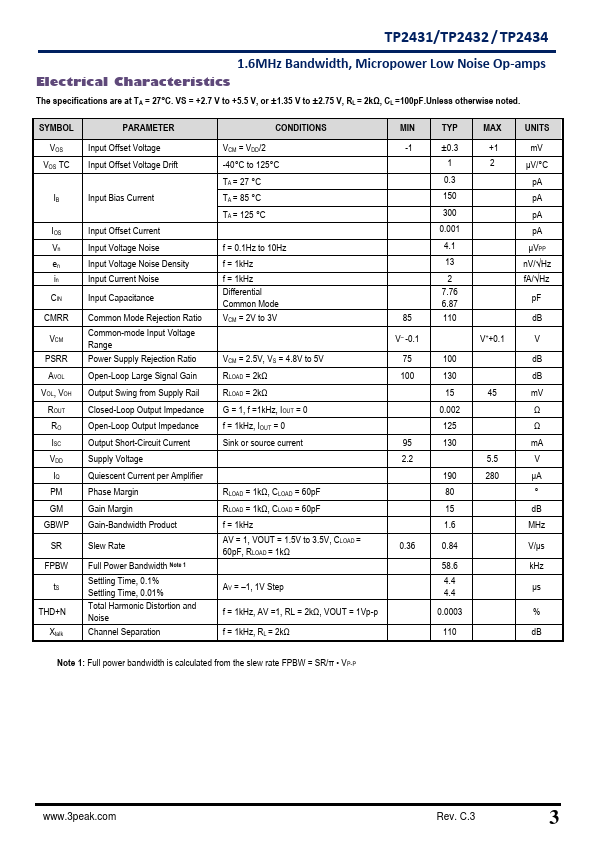

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TP2432, TP2431
Manufacturer
3Peak
File Size
690.78 KB
Datasheet
TP2431-3Peak.pdf
Description
1.6MHz Bandwidth Micropower Low Noise Op-amps
Note
This datasheet PDF includes multiple part numbers: TP2432, TP2431.
Please refer to the document for exact specifications by model.
