TP1242L1, TP1241L1 36V 1-MHz Op Amps

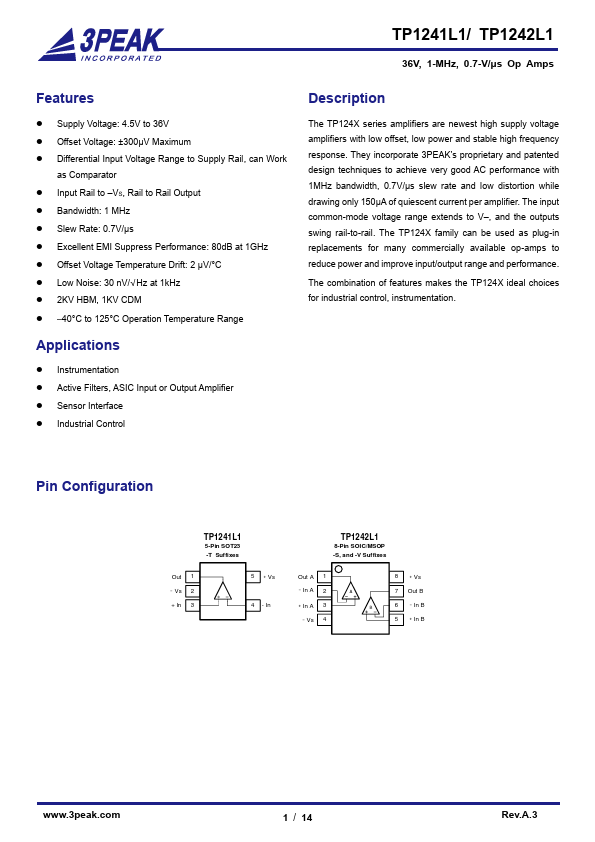

TP1242L1 Description

TP1241L1/ TP1242L1 36V, 1-MHz, 0.7-V/μs Op Amps .
The TP124X series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable high frequency response.

TP1242L1 Features

* Supply Voltage: 4.5V to 36V
* Offset Voltage: ±300μV Maximum
* Differential Input Voltage Range to Supply Rail, can Work as Comparator
* Input Rail to
* VS, Rail to Rail Output
* Bandwidth: 1 MHz
* Slew Rate: 0.7V/μs
* Excellent EMI Suppress Performance: 80dB at

TP1242L1 Applications

* Instrumentation
* Active Filters, ASIC Input or Output Amplifier
* Sensor Interface

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TP1242L1, TP1241L1. Please refer to the document for exact specifications by model.

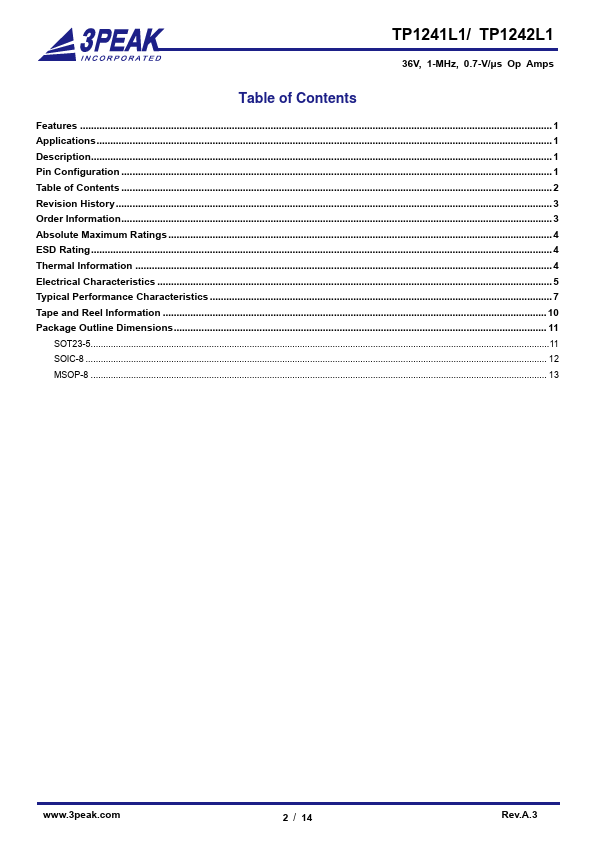

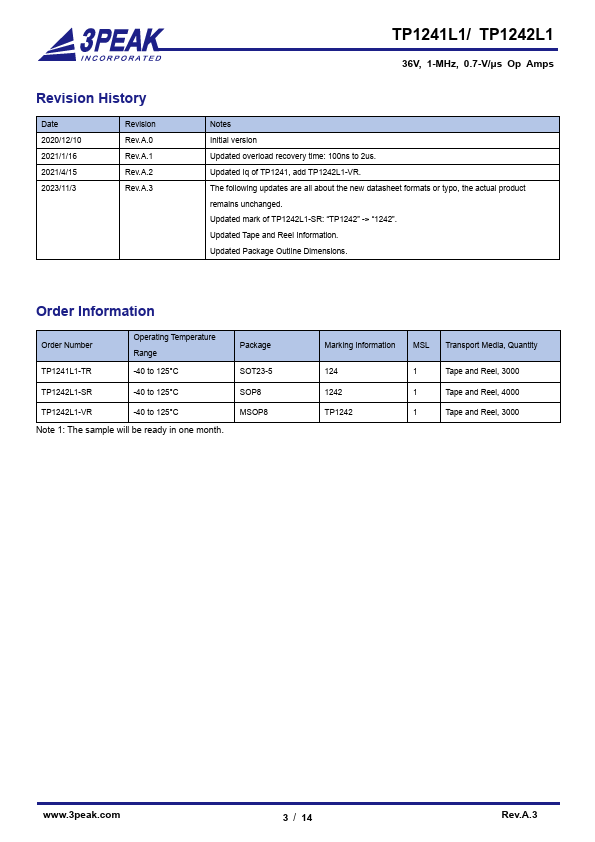

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TP1242L1, TP1241L1
Manufacturer
3Peak
File Size
734.45 KB
Datasheet
TP1241L1-3Peak.pdf
Description
36V 1-MHz Op Amps
Note
This datasheet PDF includes multiple part numbers: TP1242L1, TP1241L1.
Please refer to the document for exact specifications by model.
