TPM2025Q, TPM2025 - Automotive Dual-Channel Ultra-Highspeed GaN Predriver

3PEAK

The TPM2025Q by 3PEAK is a Automotive Dual-Channel Ultra-Highspeed GaN Predriver. Below is the official datasheet preview.

📥 Download Datasheet

TPM2025Q Automotive Dual-Channel Ultra-Highspeed GaN Predriver by 3PEAK - Datasheet Preview — Official preview page of the TPM2025Q Automotive Dual-Channel Ultra-Highspeed GaN Predriver datasheet (3PEAK).

Datasheet Details

Part number	TPM2025Q, TPM2025
Manufacturer	3PEAK
File Size	868.76 KB
Description	Automotive Dual-Channel Ultra-Highspeed GaN Predriver
Datasheet	TPM2025-3PEAK.pdf
Note	This datasheet PDF includes multiple part numbers: TPM2025Q, TPM2025. Please refer to the document for exact specifications by model.

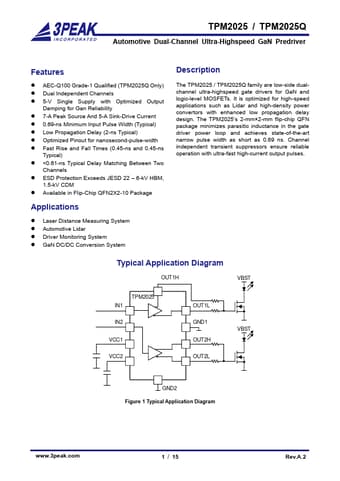

Additional preview pages of the TPM2025Q datasheet.

TPM2025Q Product details

Description

The TPM2025 / TPM2025Q family are low-side dualchannel ultra-highspeed gate drivers for GaN and logic-level MOSFETs.

Features

AEC-Q100 Grade-1 Qualified (TPM2025Q Only).
Dual Independent Channels.
5-V Single Supply with Optimized Output Damping for Gan Reliability.
7-A Peak Source And 5-A Sink-Drive Current.
0.69-ns Minimum Input Pulse Width (Typical).
Low Propagation Delay (2-ns Typical).
Optimized Pinout for nanosecond-pulse-width.
Fast Rise and Fall Times (0.45-ns and 0.45-ns Typical).
