TPL9208-S 2-A Output High-PSRR Low-Noise LDO Regulator

TPL9208-S Description

TPL9208-S Series 2-A Output, High-PSRR, Low-Noise LDO Regulator .
The TPL9208 series of products are 2-A high-current, 3.

TPL9208-S Applications

* Input Voltage Range of DFN Package:
* 1.4 V to 6.5 V
* Output Voltage Range of DFN Package:
* Adjustable Output Voltage: 0.8 V to 5.2 V
* Input Voltage Range of QFN Package:
* Without BIAS: 1.4 V to 6.5 V
* With BIAS: 1.1 V to 6.5 V

📥 Download Datasheet

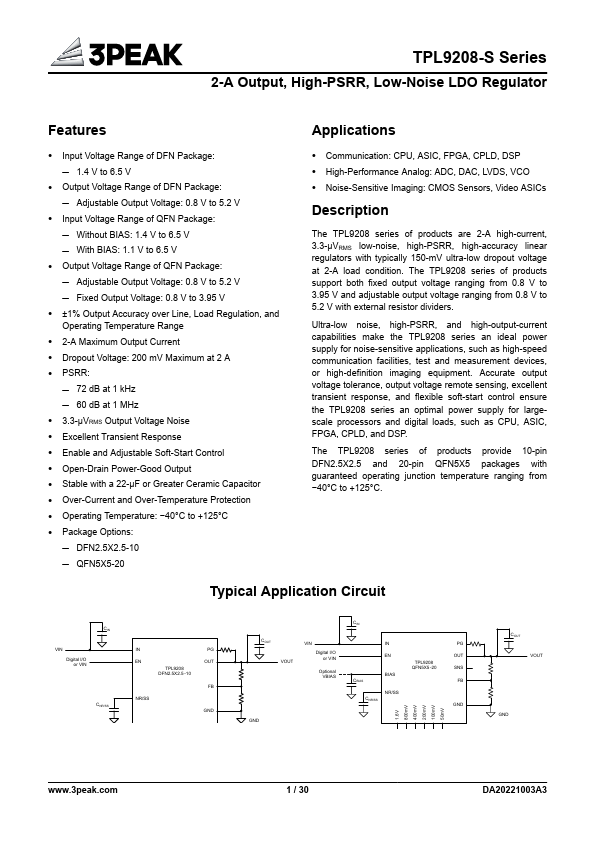

Preview of TPL9208-S PDF

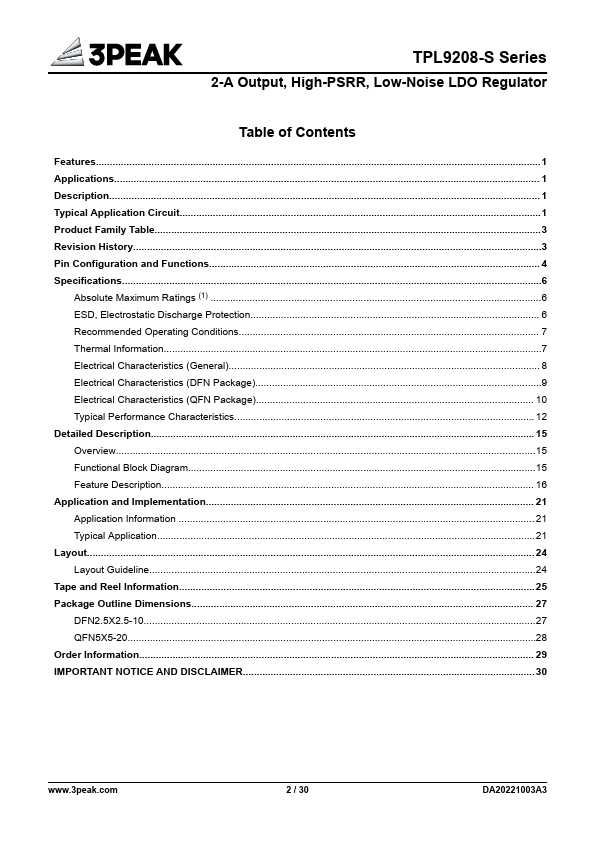

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPL9208-S
Manufacturer
3PEAK
File Size
1.68 MB
Datasheet
TPL9208-S-3PEAK.pdf
Description
2-A Output High-PSRR Low-Noise LDO Regulator
