TPL9053 500-mA High PSRR / Ultra-low Noise LDO Regulator

TPL9053 Description

.
The TPL9053 series products are 500-mA high PSRR, ultra-low noise, low dropout linear regulators with high output accuracy.

TPL9053 Features

* Input Voltage Range: 1.7 V to 5.5 V
* Output Voltage Range: 0.6 V to 5.3 V
* ±1.5% Output Accuracy Over Line Regulation, Load Regulation, and Operating Temperature Range
* 500 mA Maximum Output Current
* Low Dropout Voltage: 150 mV Typical at 500 mA
* High PSRR:
* 89 dB

TPL9053 Applications

* Portable and Battery-Powered Equipment
* Mobile Phones and Tablets
* Digital Cameras and Audio Devices Power Supply

📥 Download Datasheet

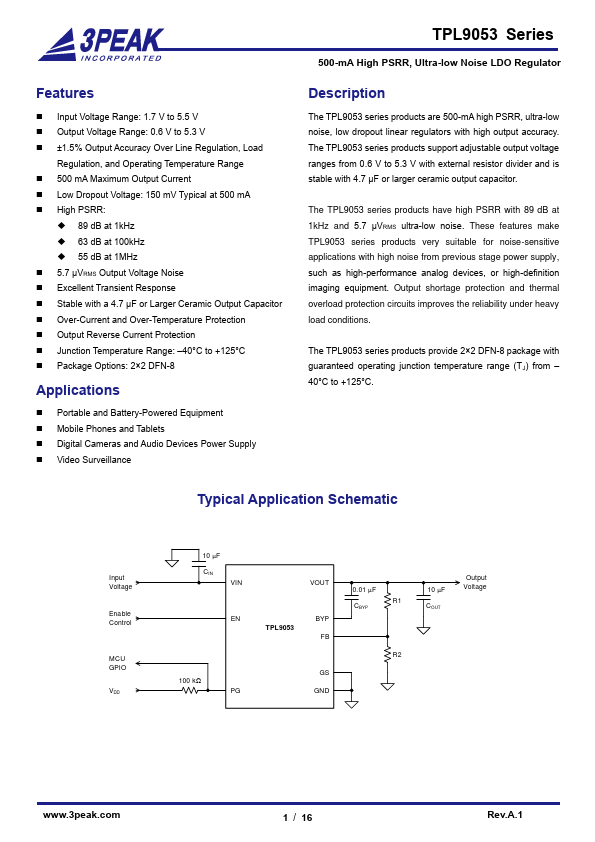

Preview of TPL9053 PDF

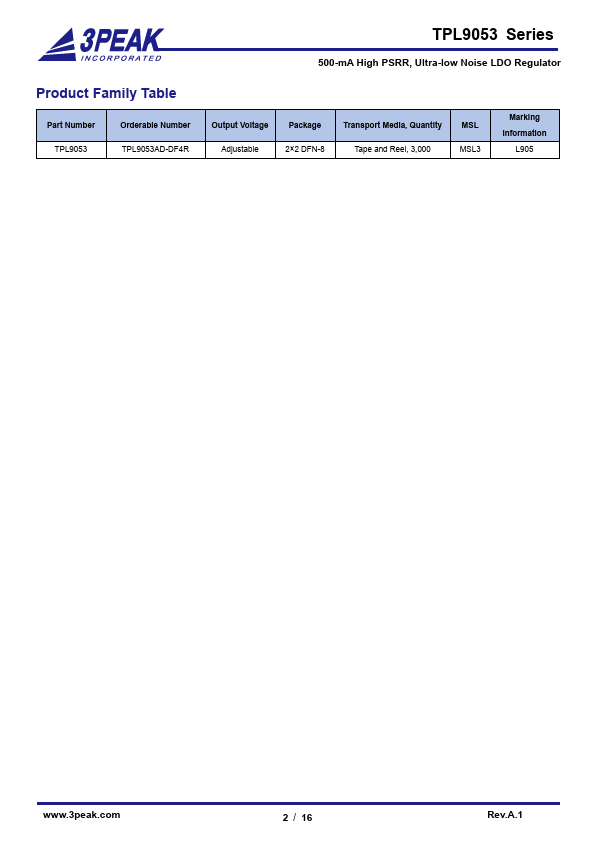

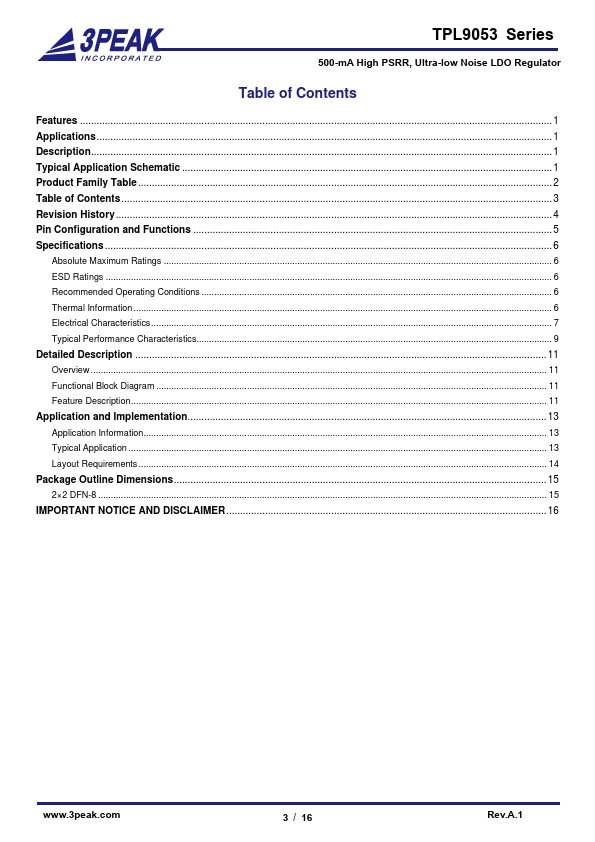

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPL9053
Manufacturer
3PEAK
File Size
626.09 KB
Datasheet
TPL9053-3PEAK.pdf
Description
500-mA High PSRR / Ultra-low Noise LDO Regulator
