TPL9053AD - Ultra-low Noise LDO Regulator

Download the TPL9053AD datasheet PDF. This datasheet also covers the TPL9053-S variant, as both devices belong to the same ultra-low noise ldo regulator family and are provided as variant models within a single manufacturer datasheet.

General Description

Input Voltage Range: 1.7 V to 5.5 V Output Voltage Range: 0.6 V to 5.3 V ±1.5% Output Accuracy over Line Regulation, Load Regulation, and Operating Temperature Range 500-mA Maximum Output Current Low Dropout Voltage: 150 mV Typical at 500 mA

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TPL9053-S-3PEAK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TPL9053AD
Manufacturer 3PEAK
File Size 857.72 KB
Description Ultra-low Noise LDO Regulator
Datasheet download datasheet TPL9053AD Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TPL9201 8-CHANNEL RELAY DRIVER Texas Instruments
TPL9202 8-CHANNEL RELAY DRIVER Texas Instruments
TPL0102 Two 256-Taps Digital Potentiometers Texas Instruments
TPL0102-EP 256-Taps Dual-Channel Digital Potentiometer Texas Instruments
TPL0202 256-Taps Dual Channel Digital Potentiometer Texas Instruments

Other Datasheets by 3PEAK

Part Number Description
TPL9053 500-mA High PSRR / Ultra-low Noise LDO Regulator
TPL9053-S Ultra-low Noise LDO Regulator
TPL9052 Ultra-low Noise LDO
TPL9052-S 500-mA High PSRR Ultra-low Noise LDO
TPL9032 Ultra-low Noise LDO

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

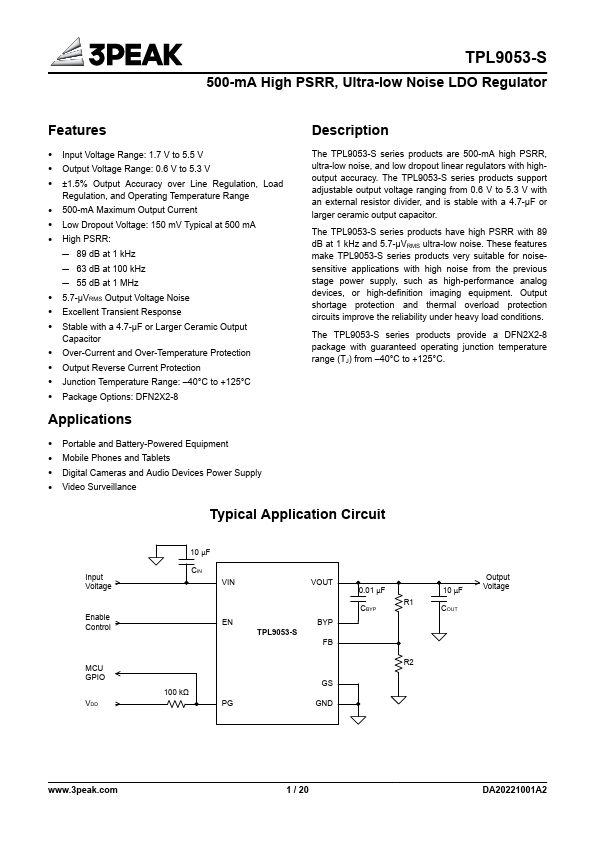

TPL9053-S 500-mA High PSRR, Ultra-low Noise LDO Regulator Features Description • Input Voltage Range: 1.7 V to 5.5 V • Output Voltage Range: 0.6 V to 5.3 V • ±1.5% Output Accuracy over Line Regulation, Load Regulation, and Operating Temperature Range • 500-mA Maximum Output Current • Low Dropout Voltage: 150 mV Typical at 500 mA • High PSRR: – 89 dB at 1 kHz – 63 dB at 100 kHz – 55 dB at 1 MHz • 5.7-μVRMS Output Voltage Noise • Excellent Transient Response • Stable with a 4.
