TPA8101 - Isolated Delta-Sigma Modulators

TPA8101 Description

TPA8101 Isolated Delta-Sigma Modulators .
CMTI: 100 kV/μs. Input Voltage Range: ±250 mV. Very Low Offset Error: Maximum 150 μV at 25°C. Very Low Gain Erro.

TPA8101 Applications

* The device is a precision, delta-sigma modulator with an output separated from the input circuitry by capacitive silicon dioxide insulation barrier. This barrier of WSOP8 package is certified to provide isolation of up to 5000-VRMS according to UL1577. The common-mode transient immunity (CMTI) of t

📥 Download Datasheet

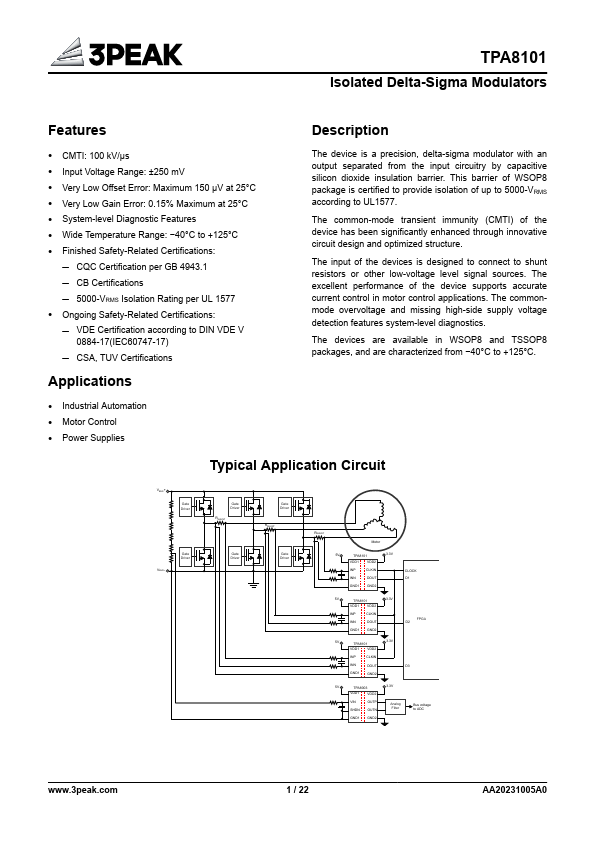

Preview of TPA8101 PDF

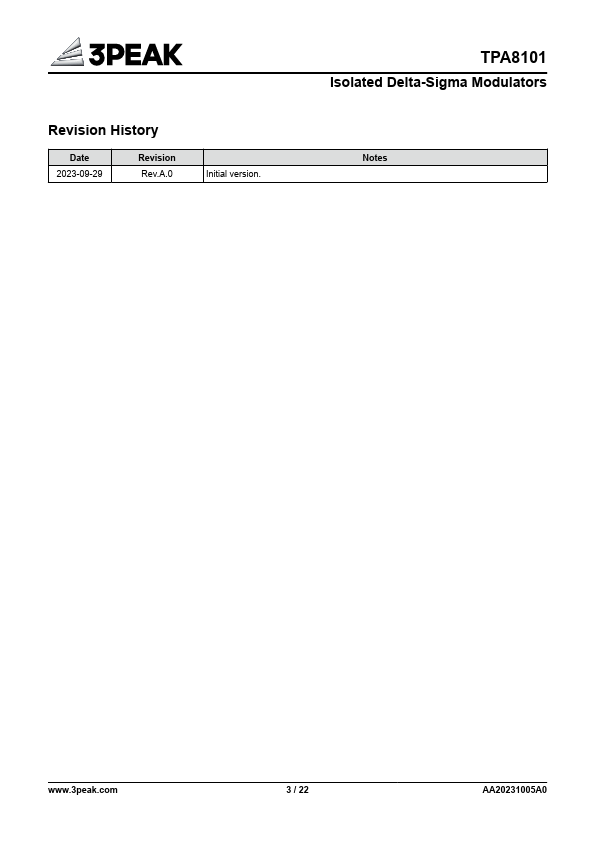

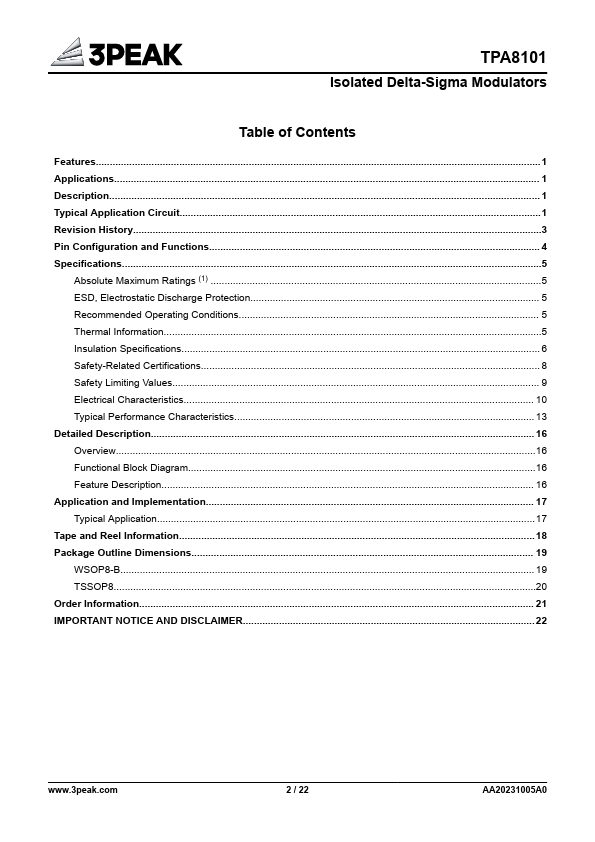

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPA8101
Manufacturer
3PEAK
File Size
1.38 MB
Datasheet
TPA8101-3PEAK.pdf
Description
Isolated Delta-Sigma Modulators
