TPA8000 - Isolated Amplifier

TPA8000 Description

TPA8000, TPA8001, TPA8002 ±250-mV or ±50-mV Input Isolated Amplifier .
CMTI: 100 kV/μs. Input Voltage Range: ±250 mV or ±50 mV. Fixed Gain: 8. Very low Gain Error: 0.

TPA8000 Applications

* Industrial Automation
* Motor Control
* Power Supplies The devices are precision, isolated amplifiers with an output separated from the input circuitry by capacitive silicon dioxide insulation barrier. The common-mode transient immunity (CMTI) of the devices has been signi

📥 Download Datasheet

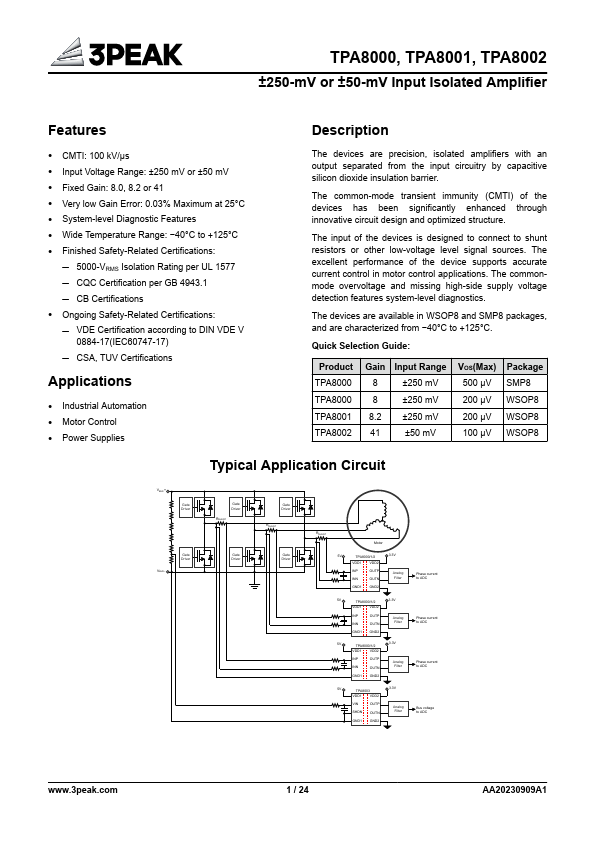

Preview of TPA8000 PDF

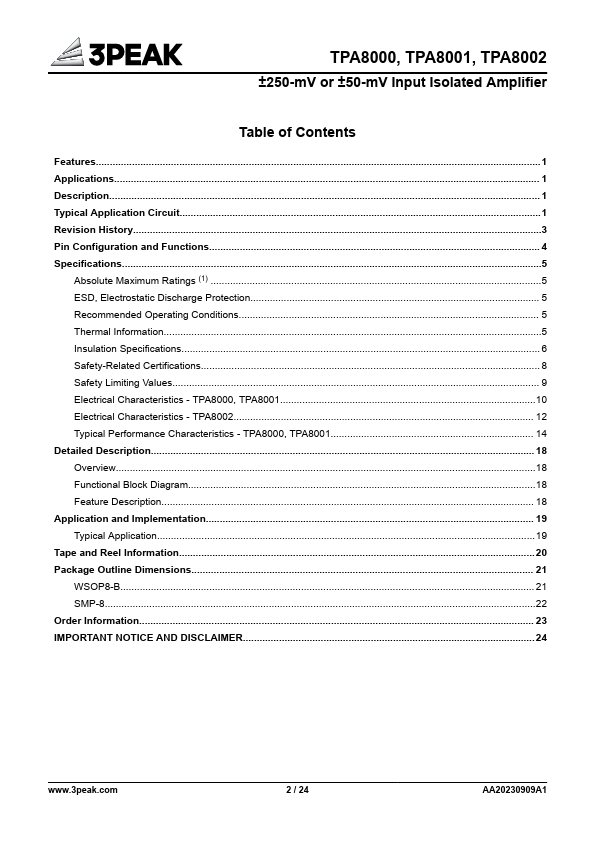

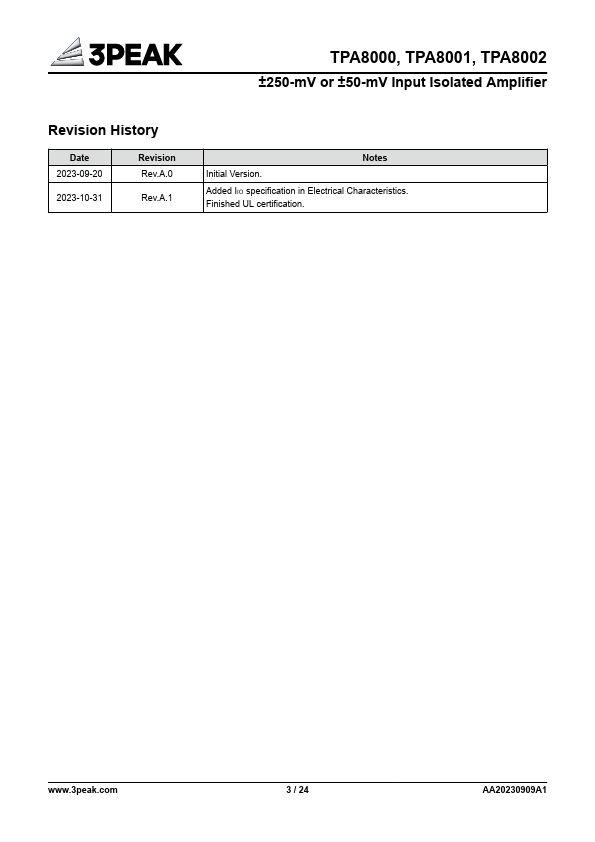

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPA8000
Manufacturer
3PEAK
File Size
1.24 MB
Datasheet
TPA8000-3PEAK.pdf
Description
Isolated Amplifier
