74AUP1G34 - Low-power buffer

Description

The 74AUP1G34 is a single buffer.

Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.

This device ensures very low static and dynamic power consumption across the entire VCC range from 0.8 V to 3.6 V.

Features

  • Wide supply voltage range from 0.8 V to 3.6 V.
  • CMOS low power dissipation.
  • High noise immunity.
  • Overvoltage tolerant inputs to 3.6 V.
  • Low noise overshoot and undershoot < 10 % of VCC.
  • IOFF circuitry provides partial power-down mode operation.
  • Latch-up performance exceeds 100 mA per JESD 78 Class II.
  • Low static power consumption; ICC = 0.9 μA (maximum).
  • Complies with JEDEC standards:.
  • JESD8-12 (0.8 V to 1.3.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
74AUP1G34 Low-power buffer NXP
74AUP1G34 SINGLE BUFFER GATE Diodes
74AUP1G32 Low-power 2-input OR gate NXP
74AUP1G32 SINGLE 2 INPUT POSITIVE OR GATE Diodes
74AUP1G3208 Low Power 3-Input OR-AND Gate NXP

Other Datasheets by Nexperia

Part Number Description
74AUP1G34-Q100 Low-power buffer
74AUP1G32 Low-power 2-input OR-gate
74AUP1G32-Q100 Low-power 2-input OR-gate
74AUP1G3208 Low-power 3-input OR-AND gate
74AUP1G332 Low-power 3-input OR-gate

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

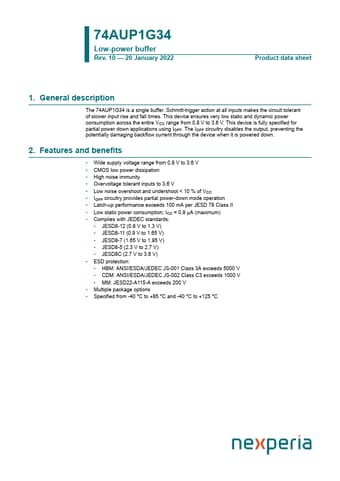

74AUP1G34 Low-power buffer Rev. 10 — 20 January 2022 Product data sheet 1. General description The 74AUP1G34 is a single buffer. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device ensures very low static and dynamic power consumption across the entire VCC range from 0.8 V to 3.6 V. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down. 2. Features and benefits • Wide supply voltage range from 0.8 V to 3.6 V • CMOS low power dissipation • High noise immunity • Overvoltage tolerant inputs to 3.
