WSP4805 - Dual P-Ch MOSFET

Winsok

Description

The WSP4805 is the highest performance trench Dual P-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Absolute Maximum Ratings Product Summery BVDSS -30V RDSON 16mΩ ID -8.0A.

📥 Download Datasheet

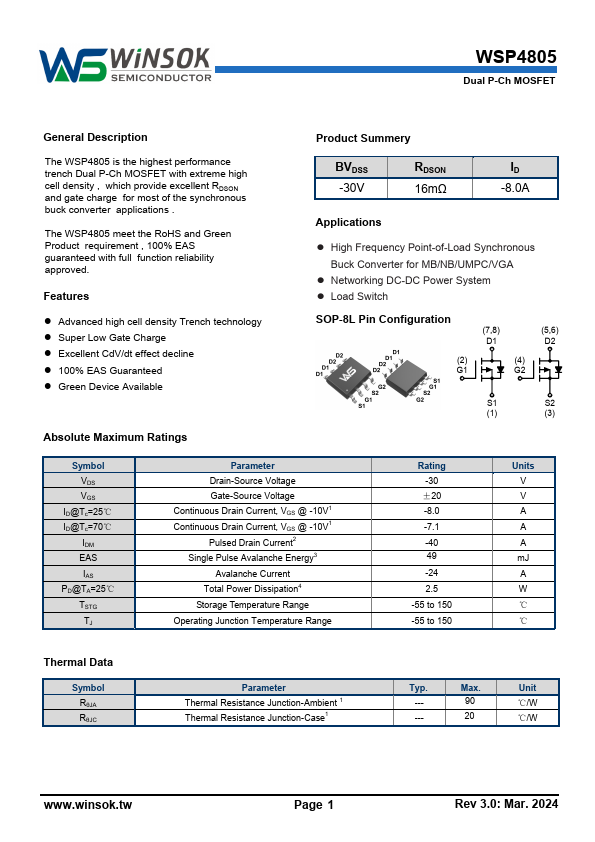

WSP4805 dual p-ch mosfet by Winsok - Datasheet Preview

Datasheet Details

Part number	WSP4805
Manufacturer	Winsok
File Size	1.90 MB
Description	Dual P-Ch MOSFET
Datasheet	WSP4805 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
WSP4807	Dual P-Channel 30V MOSFET	VBsemi
WSP4886	Dual N-Channel MOSFET	VBsemi
WSP4067	N- & P-Channel 40V MOSFET	VBsemi
WSP4068	N-Channel 40V MOSFET	VBsemi
WSP4430	N-Channel 30V MOSFET	VBsemi

Other Datasheets by Winsok

Part Number	Description
WSP4807	Dual P-Ch MOSFET
WSP4882	Dual N-Channel MOSFET
WSP4884	Dual N-Channel MOSFET
WSP4067	N&P-Channel MOSFET
WSP4067B	N&P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

WSP4805 Dual P-Ch MOSFET General Description The WSP4805 is the highest performance trench Dual P-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSP4805 meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliability approved. Features z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Absolute Maximum Ratings Product Summery BVDSS -30V RDSON 16mΩ ID -8.
