WSD25280DN56G Datasheet - Winsok

WSD25280DN56G N-Ch MOSFET

The WSD25280DN56G is the highest performance trench N-Ch MOSFET with extreme high celldensity ,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSD25280DN56G meet the RoHS and Green Product requirement , 100% EAS guaranteed with full functio.

WSD25280DN56G Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS 25V RDSON 0.7mΩ ID 280A Applications z High Frequency Point-of-Load Synchronous Buck Converter z Networking DC-DC Power S

WSD25280DN56G Datasheet (1.66 MB)

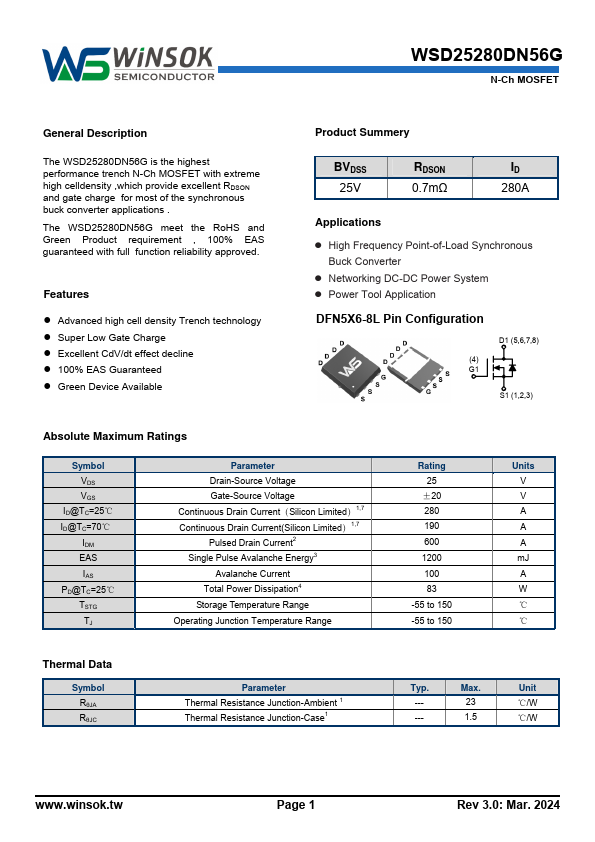

Preview of WSD25280DN56G PDF

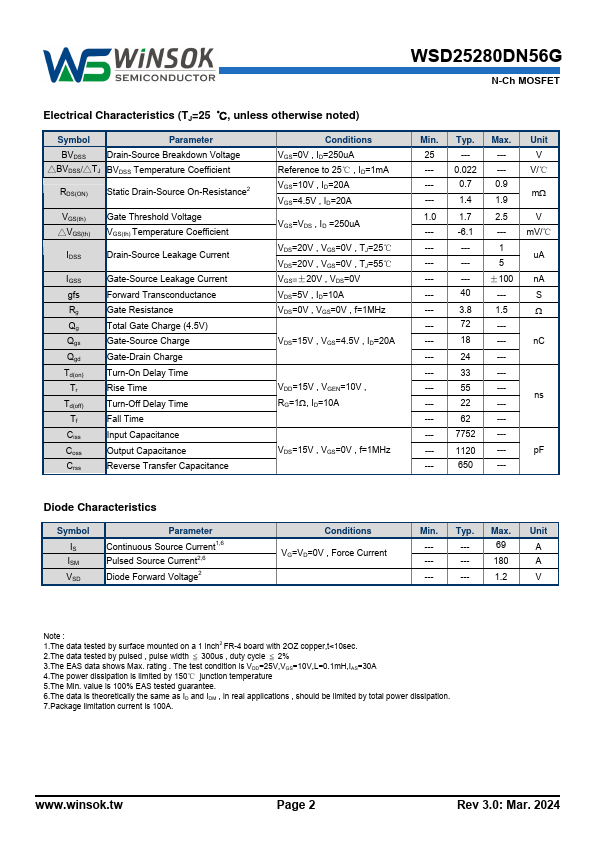

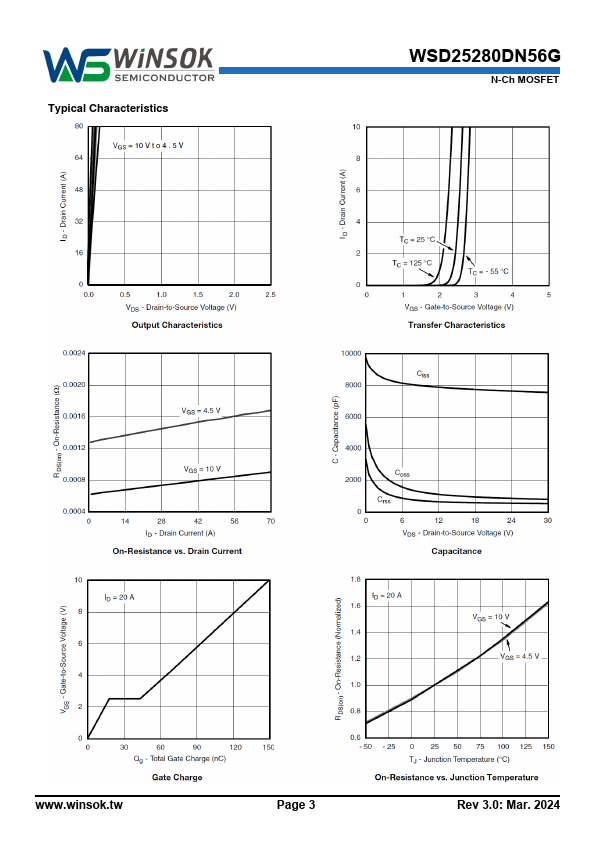

WSD25280DN56G Datasheet Preview Page 2 WSD25280DN56G Datasheet Preview Page 3

Datasheet Details

Part number:

WSD25280DN56G

Manufacturer:

Winsok

File Size:

1.66 MB

Description:

N-ch mosfet.
