WSP4807 - Dual P-Channel 30V MOSFET

Features

  • Halogen-free.
  • Trench Power MOSFET.
  • 100 % UIS Tested.

📥 Download Datasheet

Datasheet Details

Part number WSP4807
Manufacturer VBsemi
File Size 218.45 KB
Description Dual P-Channel 30V MOSFET
Datasheet download datasheet WSP4807 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
WSP4807 Dual P-Ch MOSFET Winsok
WSP4805 Dual P-Ch MOSFET Winsok
WSP4882 Dual N-Channel MOSFET Winsok
WSP4884 Dual N-Channel MOSFET Winsok
WSP4067 N&P-Channel MOSFET Winsok

Other Datasheets by VBsemi

Part Number Description
WSP4886 Dual N-Channel MOSFET
WSP4067 N- & P-Channel 40V MOSFET
WSP4068 N-Channel 40V MOSFET
WSP4430 N-Channel 30V MOSFET
WSP6946 Dual N-Channel 60V MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

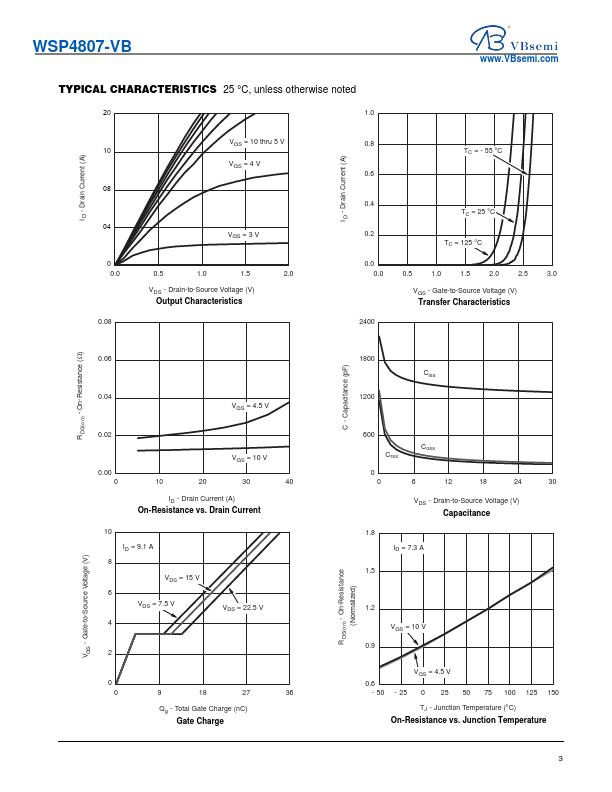

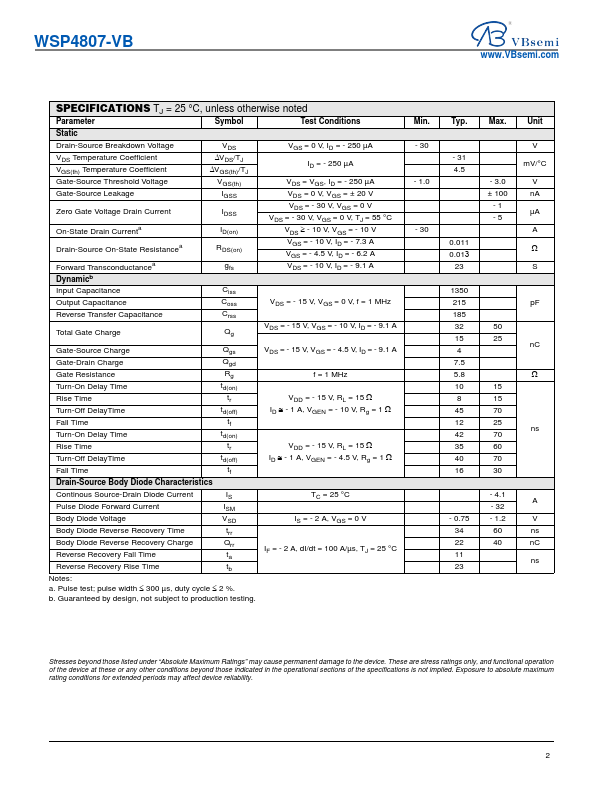

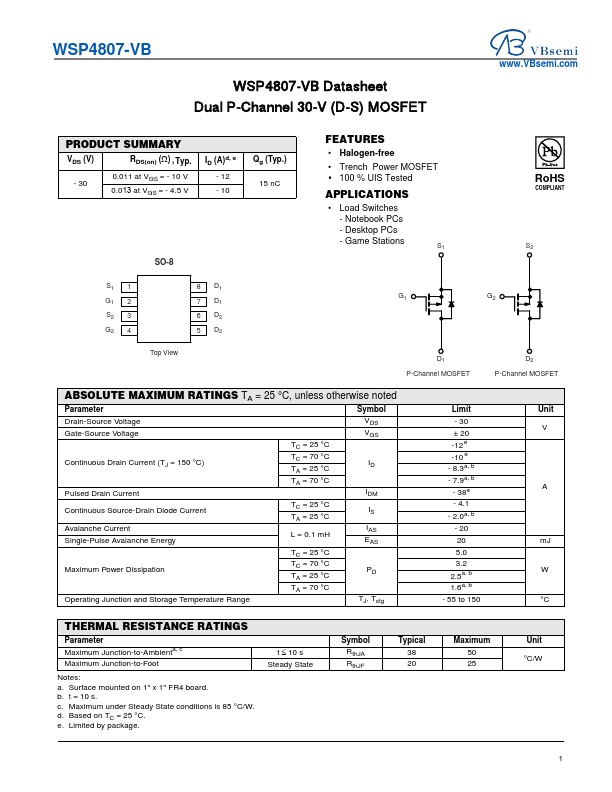

WSP4807-VB WSP4807-VB Datasheet Dual P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) , Typ. - 30 0.011 at VGS = - 10 V 0.013 at VGS = - 4.5 V ID (A)d, e - 12 - 10 Qg (Typ.) 15 nC SO-8 FEATURES • Halogen-free • Trench Power MOSFET • 100 % UIS Tested APPLICATIONS • Load Switches - Notebook PCs - Desktop PCs - Game Stations S1 RoHS COMPLIANT S2 S1 1 G1 2 S2 3 G2 4 8 D1 7 D1 6 D2 5 D2 G1 G2 Top View D1 P-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current VDS VGS TC = 25 °C TC = 70 °C TA = 25 °C ID TA = 70 °C IDM - 30 V ± 20 -12 e -10 e - 8.3a, b - 7.
