CHA3512 - GaAs Monolithic Microwave

Description

The CHA3512 is composed by a Single Pole Double Through (SPDT) switch followed by a one step digital attenuator and a double stage travelling wave amplifier.

It is designed for defense applications.

The backside of the chip is both RF and DC grounded.

Features

  • Performances: 6-18GHz.
  • 23dBm saturated output power.
  • 16dB gain.
  • 1 bit attenuator for 20dB dynamic range.
  • DC power consumption: 210mA @ 4.5V.
  • Chip size: 4.27 x 2.46 x 0.1mm 0dB state 20dB state Typical on wafer Measurements Gain versus attenuation states Main Characteristics Tamb. = 25°C Symbol Parameter Min Typ Max Unit Fop Operating frequency range 6 18 GHz G Small signal gain @ Attenuator state 0dB 16 dB Psat Saturated Output power @ Attenuator state 0.

📥 Download Datasheet

Datasheet Details

Part number CHA3512
Manufacturer United Monolithic Semiconductors
File Size 356.24 KB
Description GaAs Monolithic Microwave
Datasheet download datasheet CHA3512 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CHA3080-98F 71 ~ 76 GHz Medium Power Amplifier UMS
CHA-20NF (CHA-20xx) Coaxial Attenuators Component General
CHA-20NM (CHA-20xx) Coaxial Attenuators Component General
CHA-20NMF (CHA-20xx) Coaxial Attenuators Component General
CHA-20SF (CHA-20xx) Coaxial Attenuators Component General

Other Datasheets by United Monolithic Semiconductors

Part Number Description
CHA3512-99F Low Noise Digital Variable Amplifier
CHA3511 GaAs Monolithic Microwave
CHA3511-99F Amplifier
CHA3513 GaAs Monolithic Microwave
CHA3513-99F 3-bit Digital Variable Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

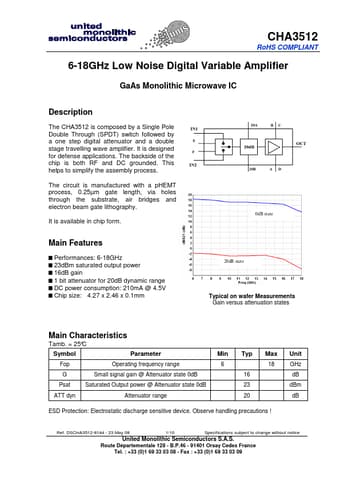

CHA3512 RoHS COMPLIANT 6-18GHz Low Noise Digital Variable Amplifier GaAs Monolithic Microwave IC Description The CHA3512 is composed by a Single Pole Double Through (SPDT) switch followed by a one step digital attenuator and a double stage travelling wave amplifier. It is designed for defense applications. The backside of the chip is both RF and DC grounded. This helps to simplify the assembly process. The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography. It is available in chip form. Main Features ■ Performances: 6-18GHz ■ 23dBm saturated output power ■ 16dB gain ■ 1 bit attenuator for 20dB dynamic range ■ DC power consumption: 210mA @ 4.5V ■ Chip size: 4.27 x 2.46 x 0.
