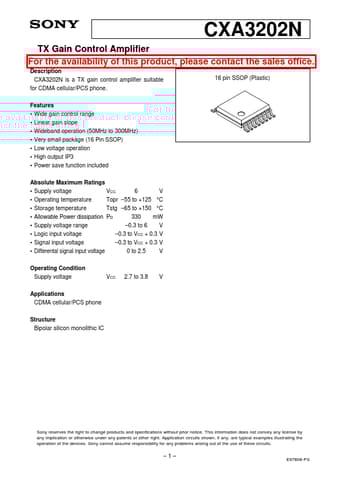

CXA3202N
TX Gain Control Amplifier
For the availability of this product, please contact the sales office.
Description
CXA3202N is a TX gain control amplifier suitable
16 pin SSOP (Plastic)
for CDMA cellular/PCS phone.
Features
Wide gain control range
Linear gain slope
Wideband operation (50MHz to 300MHz)
• Very small package (16 Pin SSOP)
Low voltage operation
High output IP3
Power save function included
Absolute Maximum Ratings
Supply voltage
VCC
6
V
Operating temperature
Topr –55 to +125 °C
Storage temperature
Tstg –65 to +150 °C
Allowable Power dissipation PD
330 mW
Supply voltage range
–0.3 to 6 V
Logic input voltage
–0.3 to VCC + 0.3 V
Signal input voltage
–0.3 to VCC + 0.3 V
Differental signal input voltage
0 to 2.5 V
Operating Condition
Supply voltage
VCC 2.7 to 3.8 V
Applications
CDMA cellular/PCS phone
Structure
Bipolar silicon monolithic IC
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
–1–
E97808-PS


Sony Semiconductor Electronic Components Datasheet

CXA3202N Datasheet

TX Gain Control Amplifier

No Preview Available !

CXA3202N pdf
Block Diagram
CXA3202N
IF Input
CDMA IN
CDMA INX
OUT
OUTX
IF Output
Gain control
Supply Voltage
GCTL
VCC1, 2
Ground
GND1, 2
Power Save
PSV
Bias
Driver
Pin Configuration
CDMA IN 1
CDMA INX 2
NC 3
GND1 4
GND2 5
NC 6
NC 7
PSV 8
16 GCTL
15 NC
14 VCC1
13 VCC2
12 GND1
11 GND2
10 OUT
9 OUTX
–2–
