GD500HFU120C2S - IGBT

Description

STARPOWER IGBT Power Module provides ultrafast switching speed as well as short circuit ruggedness.

It’s designed for the applications such as electronic welder and Inductive heating.

Features

  • 10μs short circuit capability.
  • Low switching losses.
  • Rugged with ultrafast performance.
  • VCE(sat) with positive temperature coefficient.
  • Low inductance case.
  • Fast & soft reverse recovery anti-parallel FWD.
  • Isolated copper baseplate using DBC technology Equivalent Circuit Schematic Typical.

📥 Download Datasheet

Datasheet Details

Part number GD500HFU120C2S
Manufacturer STARPOWER
File Size 396.47 KB
Description IGBT
Datasheet download datasheet GD500HFU120C2S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GD500SD SURFACE MOUNT SCHOTTKY BARRIER DIODE GTM
GD501SD SURFACE MOUNT SCHOTTKY BARRIER DIODE GTM
GD50MLXD-GTI056TN52 LCD DALIAN GOOD DISPLAY
GD50MPS12H Silicon Carbide Schottky Diode GeneSiC
GD511 SWITCHING DIODE GTM

Other Datasheets by STARPOWER

Part Number Description
GD50FFX120C5S IGBT
GD50FFX65C5S IGBT
GD50FFY120C5SF IGBT
GD50FSA120L2SF IGBT
GD50FSA120L2SMF IGBT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

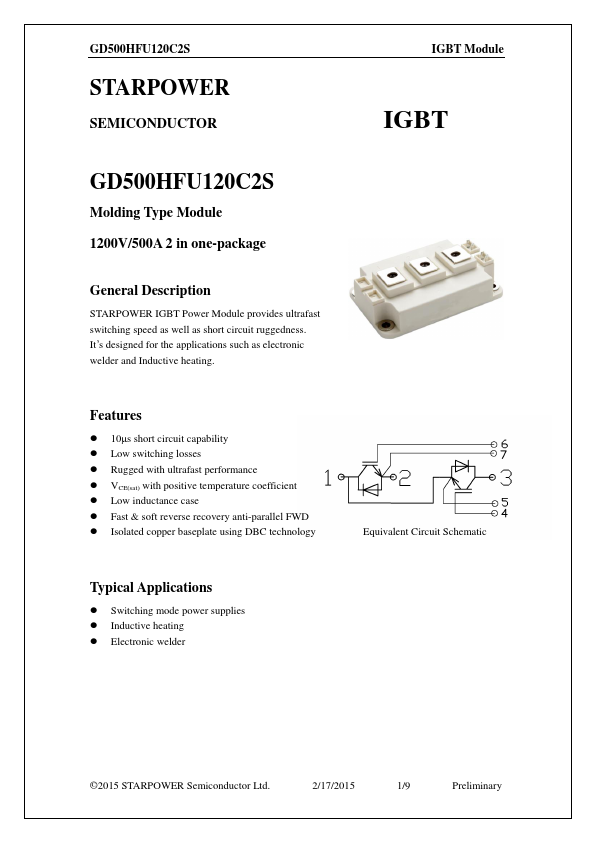

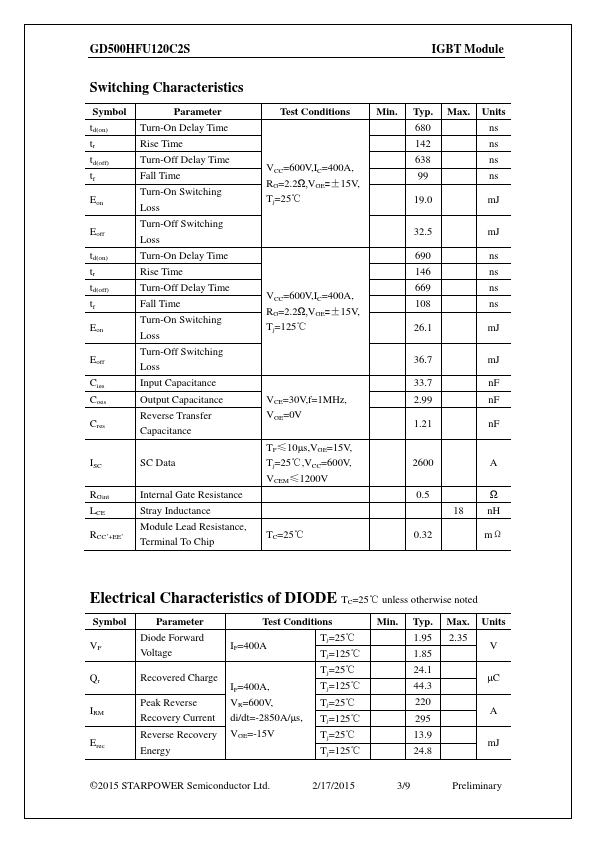

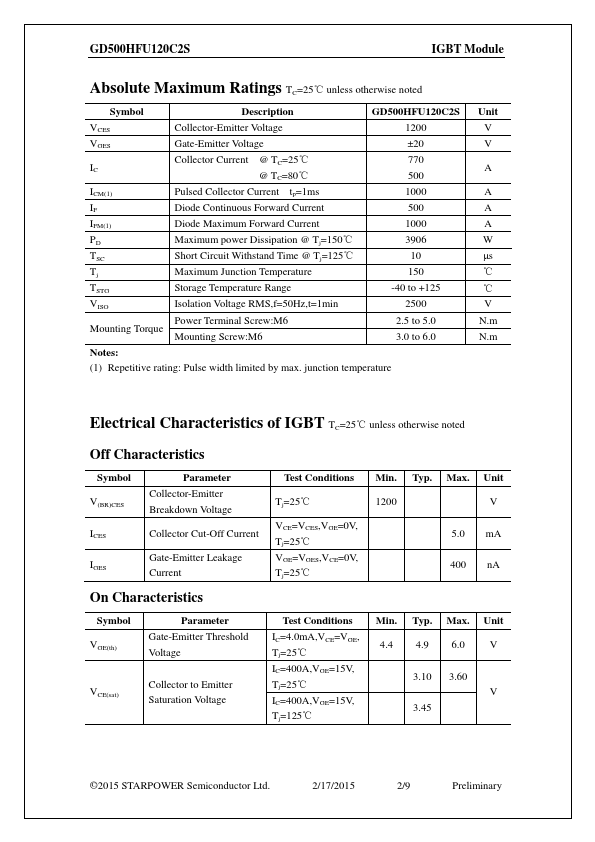

GD500HFU120C2S STARPOWER SEMICONDUCTOR IGBT Module IGBT GD500HFU120C2S Molding Type Module 1200V/500A 2 in one-package General Description STARPOWER IGBT Power Module provides ultrafast switching speed as well as short circuit ruggedness. It’s designed for the applications such as electronic welder and Inductive heating. Features  10μs short circuit capability  Low switching losses  Rugged with ultrafast performance  VCE(sat) with positive temperature coefficient  Low inductance case  Fast & soft reverse recovery anti-parallel FWD  Isolated copper baseplate using DBC technology Equivalent Circuit Schematic Typical Applications  Switching mode power supplies  Inductive heating  Electronic welder ©2015 STARPOWER Semiconductor Ltd.
