MC33790 - Two Channel Distributed System Interface (DSI) Physical Interface Device

Key Features

  • Two independent DSI compatible buses.
  • Wave-shaped bus output voltage.
  • Independent thermal shutdown and current limit.
  • Return signalling current detection.
  • Internal logic input pull-ups and pull-downs.
  • On-board charge pump.
  • 2.0 kV ESD capability.
  • Communications rate up to 150 kbps.

📥 Download Datasheet

Datasheet Details

Part number MC33790
Manufacturer NXP Semiconductors
File Size 183.80 KB
Description Two Channel Distributed System Interface (DSI) Physical Interface Device
Datasheet download datasheet MC33790 Datasheet

Full PDF Text Transcription for MC33790 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for MC33790. For precise diagrams, and layout, please refer to the original PDF.

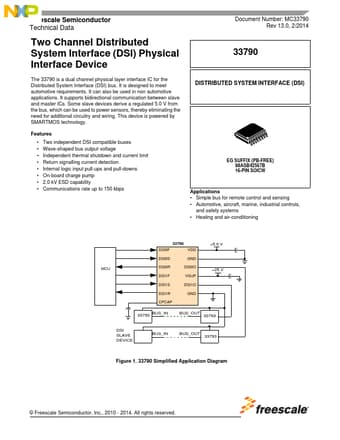

Freescale Semiconductor Technical Data Two Channel Distributed System Interface (DSI) Physical Interface Device Document Number: MC33790 Rev 13.0, 2/2014 33790 The 33790...

View more extracted text
rface Device Document Number: MC33790 Rev 13.0, 2/2014 33790 The 33790 is a dual channel physical layer interface IC for the Distributed System Interface (DSI) bus. It is designed to meet automotive requirements. It can also be used in non automotive applications. It supports bidirectional communication between slave and master ICs. Some slave devices derive a regulated 5.0 V from the bus, which can be used to power sensors, thereby eliminating the need for additional circuitry and wiring. This device is powered by SMARTMOS technology.
