P3506DT - P-Channel Transistor

Download the P3506DT datasheet PDF. This datasheet also covers the P3506DT-NIKO variant, as both devices belong to the same p-channel transistor family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (P3506DT-NIKO-SEM.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number P3506DT
Manufacturer NIKO-SEM
File Size 284.19 KB
Description P-Channel Transistor
Datasheet download datasheet P3506DT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
P3506DT P-Channel MOSFET UNIKC
P3506DTF P-Channel MOSFET UNIKC
P3506DD P-Channel MOSFET UNIKC
P3500 Power Amplifier Yamaha
P3500EA Thyristor Surge Suppressors RUILON

Other Datasheets by NIKO-SEM

Part Number Description
P3506DTF P-Channel Transistor
P3506DD P-Channel Transistor
P3506ETF P-Channel Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

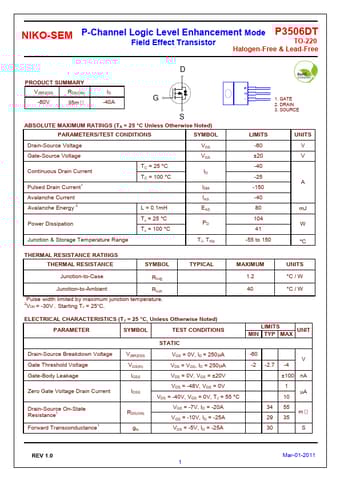

NIKO-SEM P-Channel Logic Level Enhancement Mode P3506DT Field Effect Transistor TO-220 Halogen-Free & Lead-Free PRODUCT SUMMARY V(BR)DSS RDS(ON) -60V 35mΩ ID -40A D G S ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current1 Avalanche Current Avalanche Energy 2 Power Dissipation Junction & Storage Temperature Range TC = 25 °C TC = 100 °C L = 0.1mH Tc = 25 °C Tc = 100 °C VDS VGS ID IDM IAS EAS PD TJ, Tstg 1. GATE 2. DRAIN 3.
