MT8KTF12864HZ - 1GB 1.35V DDR3L SDRAM SODIMM

Key Features

  • 1.35V DDR3L SDRAM SODIMM MT8KTF12864HZ.
  • 1GB MT8KTF25664HZ.
  • 2GB MT8KTF51264HZ.
  • 4GB Features.
  • DDR3L functionality and operations supported as defined in the component data sheet.
  • 204-pin, small-outline dual in-line memory module (SODIMM).
  • Fast data transfer rates: PC3-14900, PC3-12800, or PC3-10600.
  • 1GB (128 Meg x 64), 2GB (256 Meg x 64), 4GB (512 Meg x 64).
  • VDD = 1.35V (1.283.
  • 1.45V).
  • VDD = 1.5V (1.425.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MT800 Thyristor Modules TECHSEM
MT8006A High and Low Side Driver Mosway
MT8006B High and Low Side Driver Mosway
MT8102 P-Channel MOSFET MT Semiconductor
MT8102 450KHz Step-Down Converter Maxic Technology

Other Datasheets by Micron Technology

Part Number Description
MT8KTF12864AZ 1.35V DDR3L SDRAM UDIMM
MT8KTF25664AZ 1.35V DDR3L SDRAM UDIMM
MT8KTF25664HZ 2GB 1.35V DDR3L SDRAM SODIMM
MT8KTF51264AZ 1.35V DDR3L SDRAM UDIMM
MT8KTF51264HZ 4GB 1.35V DDR3L SDRAM SODIMM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

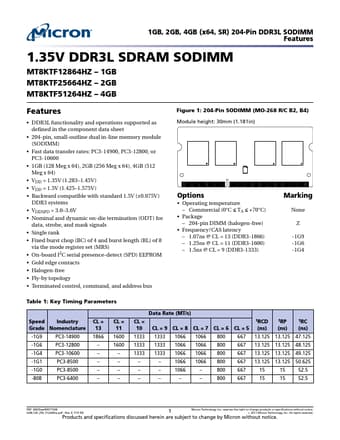

1GB, 2GB, 4GB (x64, SR) 204-Pin DDR3L SODIMM Features 1.35V DDR3L SDRAM SODIMM MT8KTF12864HZ – 1GB MT8KTF25664HZ – 2GB MT8KTF51264HZ – 4GB Features • DDR3L functionality and operations supported as defined in the component data sheet • 204-pin, small-outline dual in-line memory module (SODIMM) • Fast data transfer rates: PC3-14900, PC3-12800, or PC3-10600 • 1GB (128 Meg x 64), 2GB (256 Meg x 64), 4GB (512 Meg x 64) • VDD = 1.35V (1.283–1.45V) • VDD = 1.5V (1.425–1.575V) • Backward compatible with standard 1.5V (±0.075V) DDR3 systems • VDDSPD = 3.0–3.
