The SY100EP16V is a 3.3/5V, high-speed, fully differential ECL Receiver/Driver that can process clock signals as fast as 3GHz or data patterns up to 2.5Gbps.
Key Features
Precision Edge®.
Precision 800mV ECL Receiver/Driver.
100K ECL compatible I/O.
Guaranteed AC performance over temperature and voltage:.
Full PDF Text Transcription for SY100EP16V (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
SY100EP16V. For precise diagrams, and layout, please refer to the original PDF.

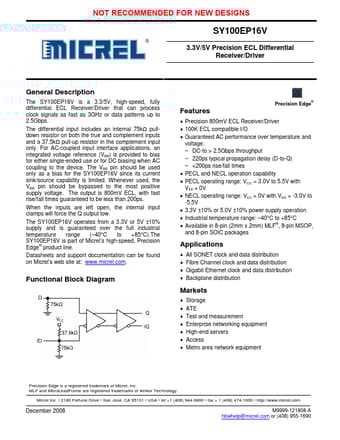

NOT RECOMMENDED FOR NEW DESIGNS SY100EP16V 3.3V/5V Precision ECL Differential Receiver/Driver General Description The SY100EP16V is a 3.3/5V, high-speed, fully differenti...
View more extracted text
l Description The SY100EP16V is a 3.3/5V, high-speed, fully differential ECL Receiver/Driver that can process clock signals as fast as 3GHz or data patterns up to 2.5Gbps. The differential input includes an internal 75kΩ pulldown resistor on both the true and complement inputs and a 37.5kΩ pull-up resistor in the complement input only. For AC-coupled input interface applications, an integrated voltage reference (VBB) is provided to bias for either single-ended use or for DC biasing when AC coupling to the device. The VBB pin should be used only as a bias for the SY100EP16V since its current sink/source capability is limite
SY100EP16V Datasheet
