LTS-3401LJG LED Display

The LTS-3401LJG is a 0.8-inch (20.32-mm) digit height single digit low current seven-segment display. This device utilizes AlInGaP Green LED chips, which are made from AlInGaP on a non-transparent GaAs substrate, and has a gray face and white segments. DEVICE PART NO. AlInGaP Green LTS-3401LJG DE.

LTS-3401LJG Features

* ＊0.8-INCH (20.32-mm) DIGIT HEIGHT. ＊CONTINUOUS UNIFORM SEGMENTS ＊LOW POWER CONSUMPTION. ＊LOW POWER REQUIREMENT. ＊EXCELLENT CHARACTERS APPEARANCE. ＊WIDE VIEWING ANGLE. ＊SOLID STATE RELIABILITY. ＊CATEGORIZED FOR LUMINOUS INTENSITY. ＊I.C. COMPATIABLE. ＊EASY MOUNTING ON P.C. BOARD OR SOCKET. DESCRIPTIO

LTS-3401LJG Datasheet (353.18 KB)

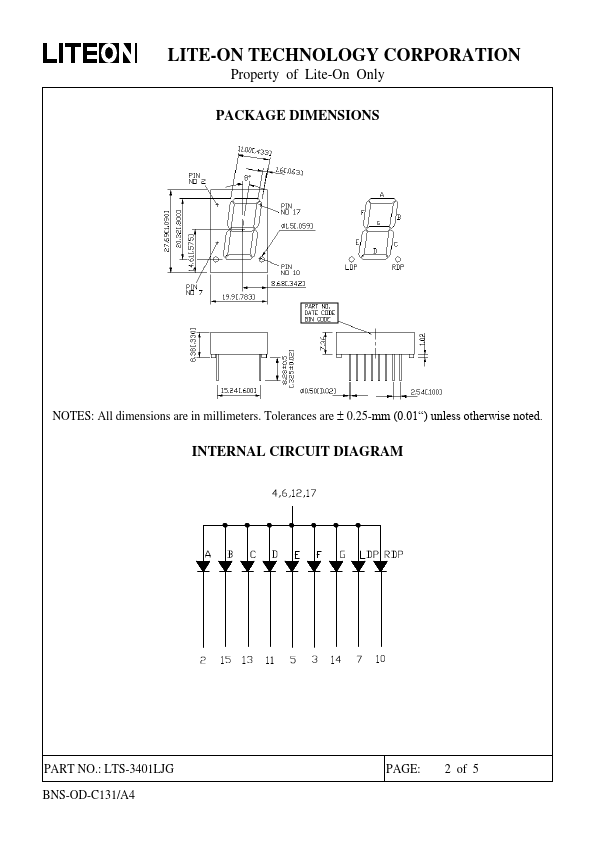

Preview of LTS-3401LJG PDF

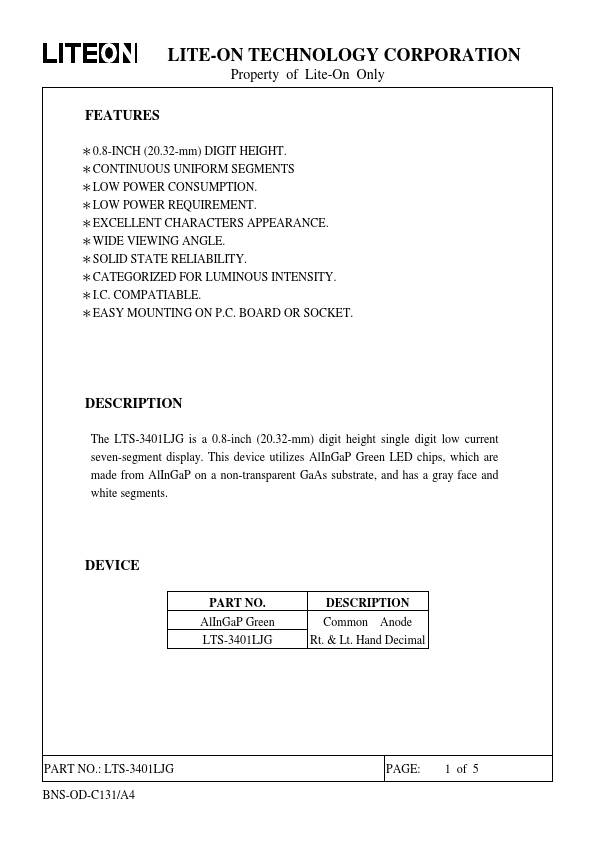

LTS-3401LJG Datasheet Preview Page 2 LTS-3401LJG Datasheet Preview Page 3

Datasheet Details

Part number:

LTS-3401LJG

Manufacturer:

LITE-ON

File Size:

353.18 KB

Description:

Led display.
