LTS-3401LJD - LED Display

Download the LTS-3401LJD datasheet PDF. This datasheet also covers the LTS-3401LJD-LITE variant, as both devices belong to the same led display family and are provided as variant models within a single manufacturer datasheet.

Description

The LTS-3401LJD is a 0.8-inch (20.32-mm) digit height single digit low current seven-segment display.

This device utilizes AlInGaP hi-eff.

red LED chips, which are made from AlInGaP on a non-transparent GaAs substrate, and has a gray face and white segments.

Features

  • ＊0.8-INCH (20.32-mm) DIGIT HEIGHT. ＊.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LTS-3401LJD-LITE-ON.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
LTS-3401LE LED Display LITE-ON Electronics
LTS-3401LG SEVEN-SEGMENT NUMERIC LED DISPLAY LITE-ON Electronics
LTS-3401LP LED Display LITE-ON Electronics
LTS-3401LY SEVEN-SEGMENT NUMERIC LED DISPLAY LITE-ON Electronics
LTS-3403L (LTS340xLR) SEVEN-SEGMENT NUMERIC LED DISPLAY LITE-ON Electronics

Other Datasheets by LITEON

Part Number Description
LTS-3401LJF LED Display
LTS-3401LJG LED Display
LTS-3401LJG-04J LED Display
LTS-3401LJR LED Display
LTS-3401LE-03 LED Display

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

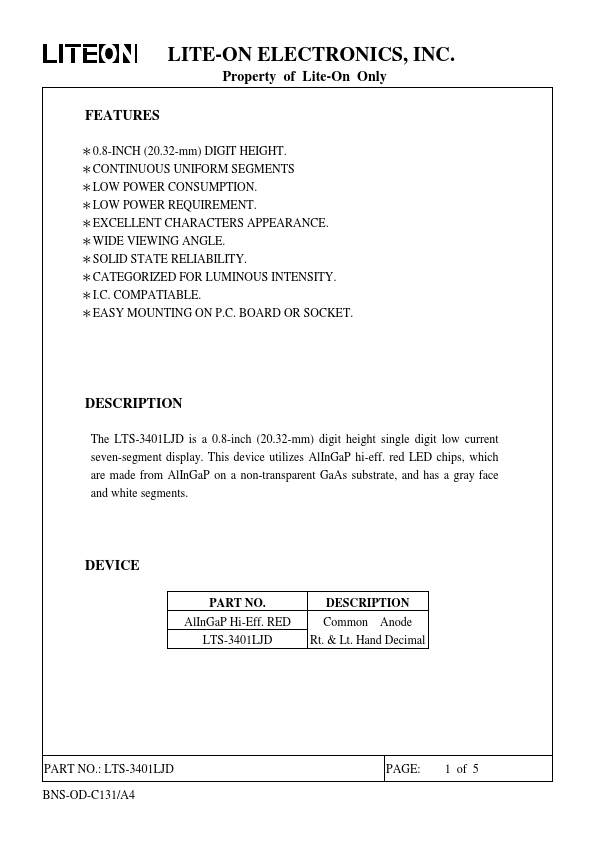

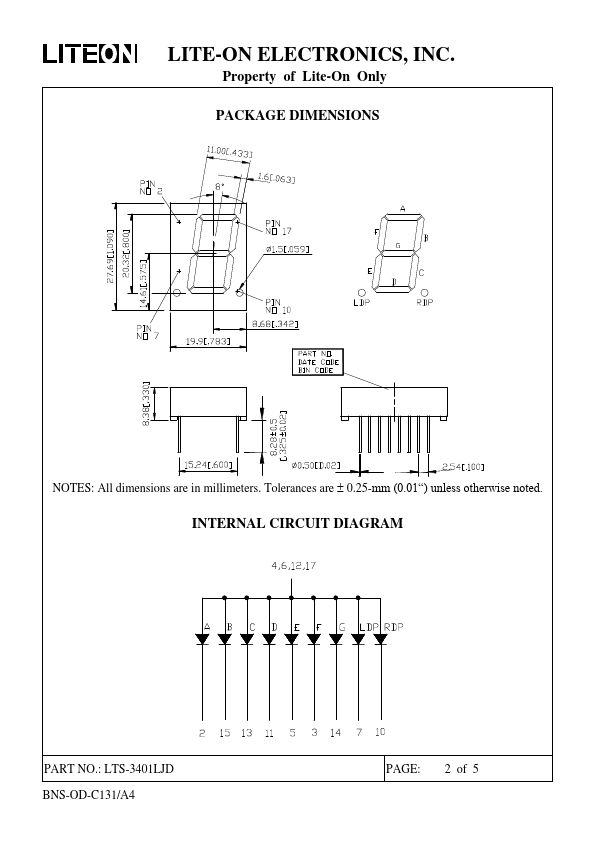

LED Display Product Data Sheet LTS-3401LJD Spec No.: DS30-2001-299 Effective Date: 05/07/2002 Revision: - LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto LITE-ON ELECTRONICS, INC. Property of Lite-On Only FEATURES ＊0.8-INCH (20.32-mm) DIGIT HEIGHT. ＊CONTINUOUS UNIFORM SEGMENTS ＊LOW POWER CONSUMPTION. ＊LOW POWER REQUIREMENT. ＊EXCELLENT CHARACTERS APPEARANCE. ＊WIDE VIEWING ANGLE. ＊SOLID STATE RELIABILITY. ＊CATEGORIZED FOR LUMINOUS INTENSITY. ＊I.C. COMPATIABLE. ＊EASY MOUNTING ON P.C. BOARD OR SOCKET. DESCRIPTION The LTS-3401LJD is a 0.8-inch (20.
