IRFR8314PbF - Power MOSFET

International Rectifier

IRFR8314PbF Description

IRFR8314PbF Application *Optimized for UPS/Inverter Applications *Low Voltage Power Tools Benefits *Fully Characterized Avalanche Volt.

IRFR8314PbF Features

* MILLIMETERS ( INCHES ). 3. OUTLINE CONFORMS TO EIA-481 & EIA-541. FEED DIRECTION 13 INCH NOTES : 1. OUTLINE CONFORMS TO EIA-481. 16 mm Note: For the most current drawing please refer to IR website at http://www. irf. com/package/ 8 www. irf. com © 2014 International Rectifier Submit Datasheet Fee

IRFR8314PbF Applications

* Low Voltage Power Tools Benefits
* Fully Characterized Avalanche Voltage and Current
* Lead-Free, RoHS Compliant HEXFET® Power MOSFET VDSS 30 V D RDS(on) max (@ VGS = 10V) 2.2 m G (@ VGS = 4.5V) 3.1 S Qg (typical) 40 nC ID (Silicon Limited) ID (Package Limited) 179

📥 Download Datasheet

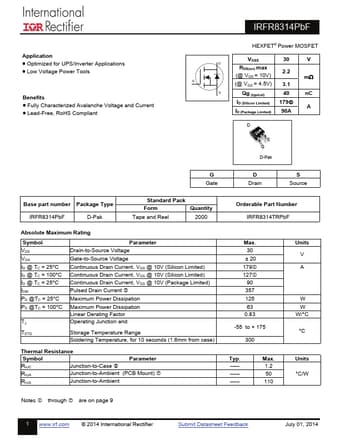

IRFR8314PbF Datasheet Preview — Preview of IRFR8314PbF PDF

Datasheet Details

Part number: IRFR8314PbF
Manufacturer: International Rectifier
File Size: 531.37 KB
Datasheet: IRFR8314PbF-InternationalRectifier.pdf
Description: Power MOSFET
