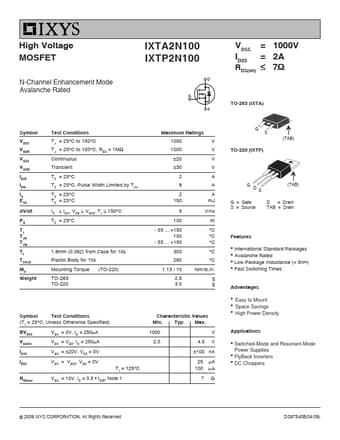

High Voltage MOSFET
N-Channel Enhancement Mode Avalanche Rated
IXTA2N100 IXTP2N100
VDSS = ID25 = ≤RDS(on)
1000V 2A 7Ω
TO-263 (IXTA)
Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS
dV/dt
PD TJ TJM Tstg TL TSOLD Md Weight
Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C TC = 25°C
1.6mm (0.062) from Case for 10s Plastic Body for 10s Mounting Torque (TO-220) TO-263 TO-220
Maximum Ratings 1000 1000
V V
±20 V ±30 V
2A 8A
2A 150 mJ
5 V/ns
100 W
- 55 ... +150 150
- 55 ... +150
300 260
1.13 / 10
2.5 3.0
°C °C °C °C °C Nm/lb.in.
