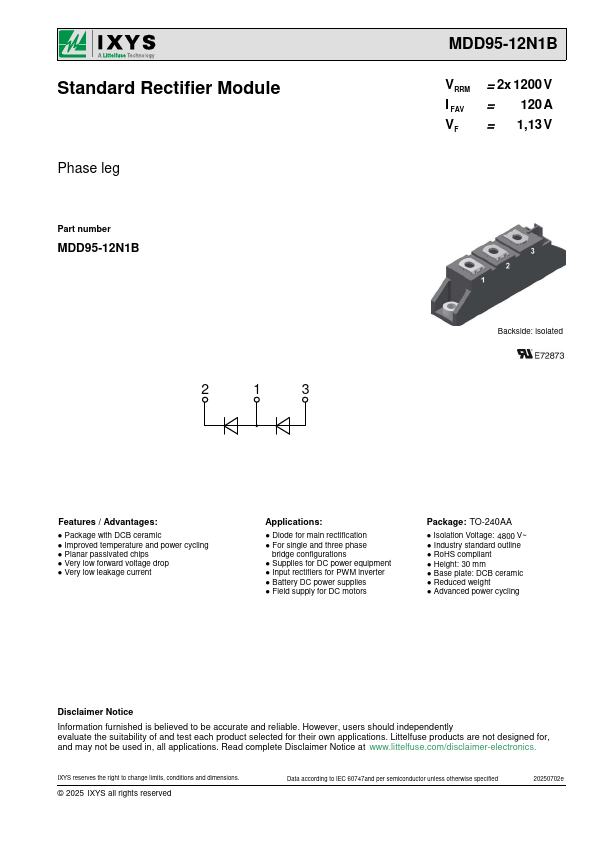

Standard Rectifier Module
Phase leg
Part number
MDD95-12N1B
2
1
3
MDD95-12N1B
VRRM I FAV VF
= 2x 1200 V = 120 A = 1,13 V
Backside: isolated
Features / Advantages:
● Package with DCB ceramic ● Improved temperature and power cycling ● Planar passivated chips ● Very low forward voltage drop ● Very low leakage current
Applications:
● Diode for main rectification ● For single and three phase
bridge configurations ● Supplies for DC power equipment ● Input rectifiers for PWM inverter ● Battery DC power supplies ● Field supply for DC motors
Package: TO-240AA
● Isolation Voltage: 4800 V~ ● Industry standard outline ● RoHS compliant ● Height: 30 mm ● Base plate: DCB ceramic ● Reduced weight ● Advanced power cycling
Disclaimer Notice
Information furnished is believed to be accurate and rel
