This datasheet also covers the HSMH-C650 variant, as both devices belong to the same surface mount chip leds family and are provided as variant models within a single manufacturer datasheet.
General Description
These single and bicolor LEDs are designed in an industry standard package for ease of handling and use.
Five different LED colors are available in two compact, low profile, single color packages.
Key Features
Small Size.
Industry Standard Footprint.
Low Profile.
Tinted, Diffused Optics.
Compatible with IR Solder Process.
Five Colors and Bicolor Available.
Available in 8 mm Tape on 7" (178 mm) Diameter Reels.
Full PDF Text Transcription for HSMG-C670 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
HSMG-C670. For precise diagrams, and layout, please refer to the original PDF.

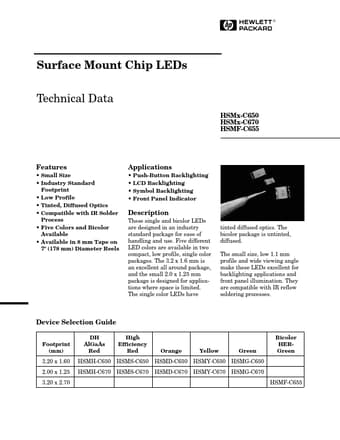

1 Surface Mount Chip LEDs Technical Data HSMx-C650 HSMx-C670 HSMF-C655 Features • Small Size • Industry Standard Footprint • Low Profile • Tinted, Diffused Optics • Compa...
View more extracted text
try Standard Footprint • Low Profile • Tinted, Diffused Optics • Compatible with IR Solder Process • Five Colors and Bicolor Available • Available in 8 mm Tape on 7" (178 mm) Diameter Reels Applications • Push-Button Backlighting • LCD Backlighting • Symbol Backlighting • Front Panel Indicator Description These single and bicolor LEDs are designed in an industry standard package for ease of handling and use. Five different LED colors are available in two compact, low profile, single color packages. The 3.2 x 1.6 mm is an excellent all around package, and the small 2.0 x 1.25 mm package is designed for applications where sp
