HMS4294 N-Channel Super Trench Power MOSFET

The HMS4294 uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching an.

HMS4294 Features

* VDS =100V,ID =14A RDS(ON)=8.8mΩ (typical) @ VGS=10V RDS(ON)=9.8mΩ (typical) @ VGS=4.5V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 150 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Application

* DC/DC Converter

HMS4294 Datasheet (593.96 KB)

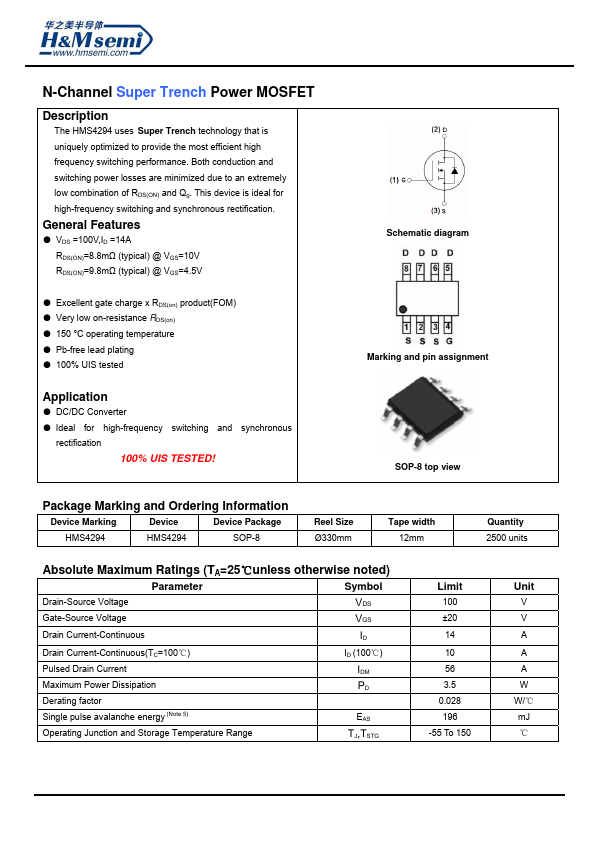

HMS4294 Datasheet Preview — Preview of HMS4294 PDF

Datasheet Details

Part number:

HMS4294

Manufacturer:

H&M Semiconductor

File Size:

593.96 KB

Description:

N-channel super trench power mosfet.
