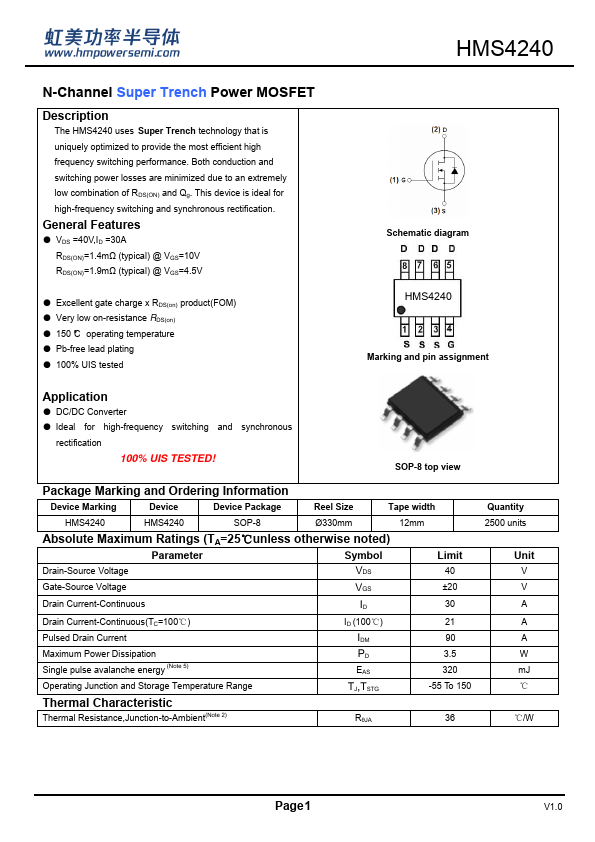

HMS4240 N-Channel Super Trench Power MOSFET

The HMS4240 uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching an.

HMS4240 Features

* VDS =40V,ID =30A RDS(ON)=1.4mΩ (typical) @ VGS=10V RDS(ON)=1.9mΩ (typical) @ VGS=4.5V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 150 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Schematic diagram HMS4240 Marking a

HMS4240 Datasheet (524.13 KB)
