HM78L03 30V 100mA Low Dropout Linear Regulator

The HM78LXX is a fixed voltage (3V/3.3V/5V) threeterminal integrated regulator that can be used in many applications. Its excellent internal current limit and thermal shutdown characteristics make it especially suitable for overload conditions. When used to replace the traditional Zener diode-resist.

HM78L03 Features

* ±2% output voltage tolerance

* VIN range up to 30V

* Maximum output current 100mA

* Output transistor safe area protection

* Built-in Thermal Protection

* Built-in Overcurrent Protection

* Application

* New energy (photovoltaic inverter,

HM78L03 Datasheet (900.85 KB)

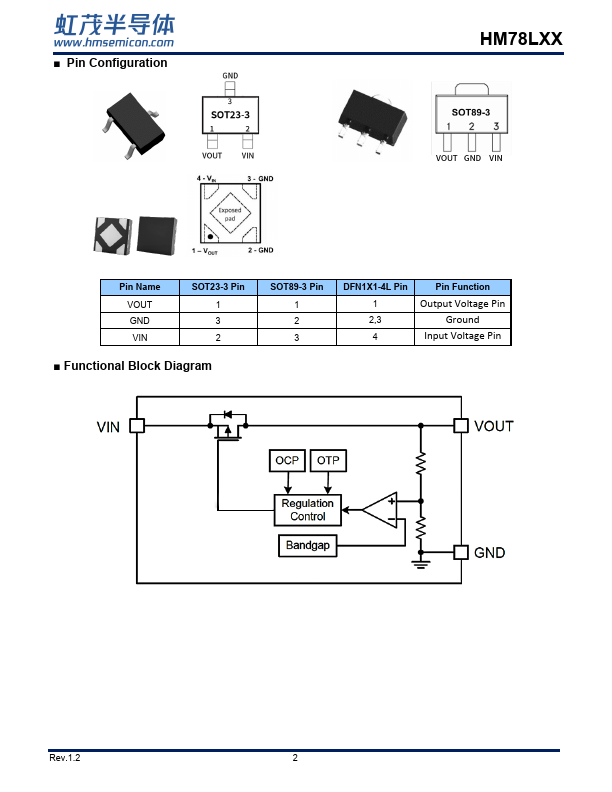

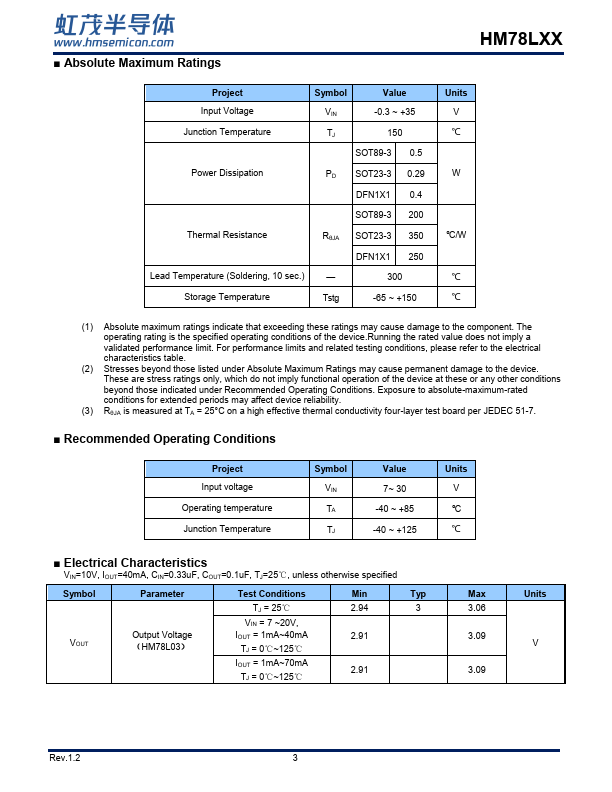

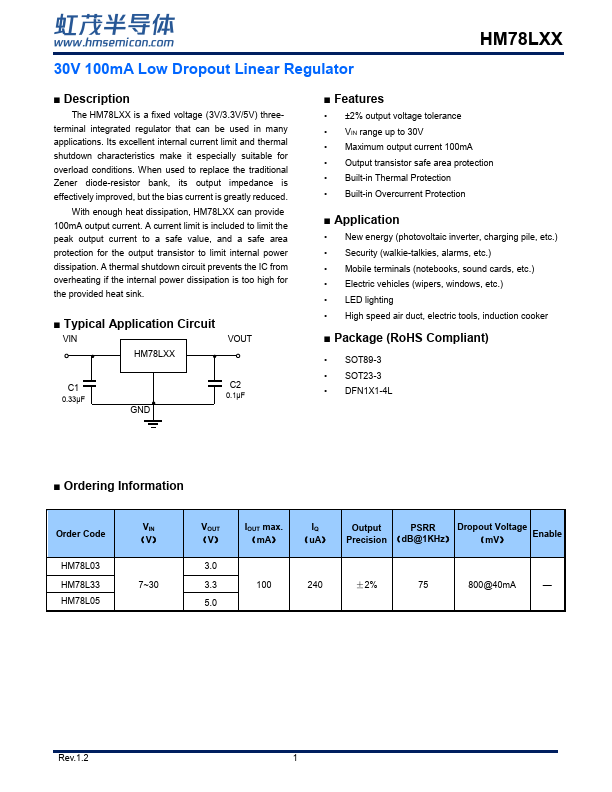

HM78L03 Datasheet Preview — Preview of HM78L03 PDF

Datasheet Details

Part number:

HM78L03

Manufacturer:

H&M Semiconductor

File Size:

900.85 KB

Description:

30v 100ma low dropout linear regulator.
