Part number:
HM4616Q
Manufacturer:
H&M Semiconductor
File Size:
871.65 KB
Description:

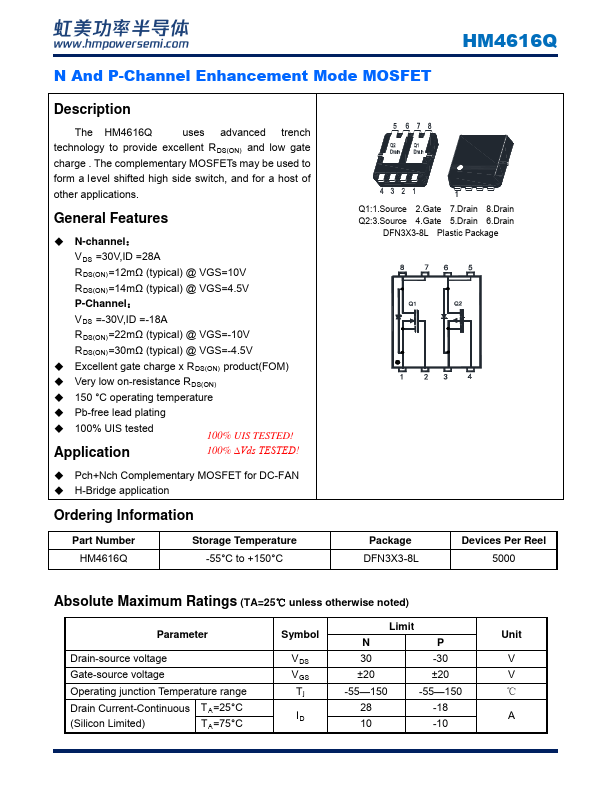

N and p-channel enhancement mode mosfet.
Datasheet Details
HM4616Q Features
* N-channel： VDS =30V,ID =28A RDS(ON)=12mΩ (typical) @ VGS=10V RDS(ON)=14mΩ (typical) @ VGS=4.5V P-Channel： VDS =-30V,ID =-18A RDS(ON)=22mΩ (typical) @ VGS=-10V RDS(ON)=30mΩ (typical) @ VGS=-4.5V
* Excellent gate charge x RDS(ON) product(FOM)
* Very low on-resistance RDS(ON)
* 150
Datasheet Details
HM4616Q
H&M Semiconductor
871.65 KB
N and p-channel enhancement mode mosfet.
