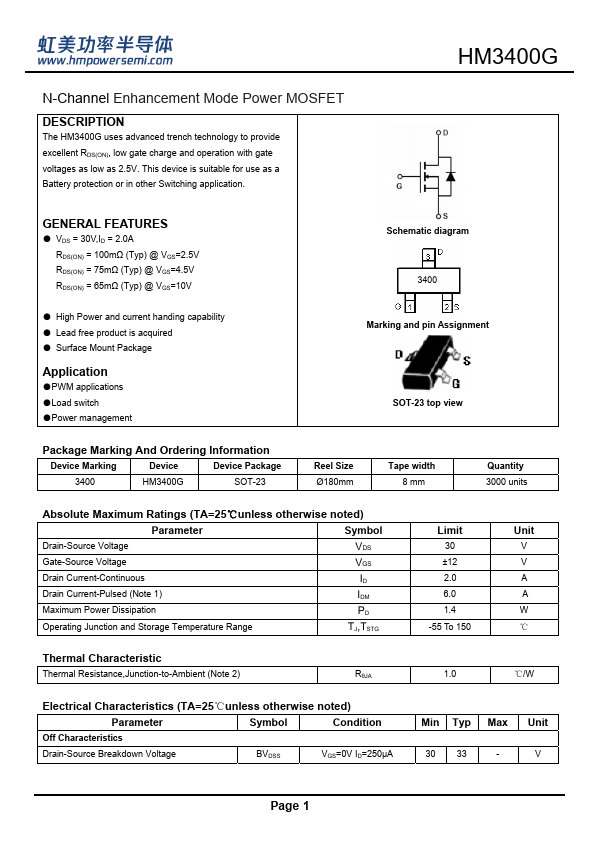

Part number:
HM3400G
Manufacturer:
H&M Semiconductor
File Size:
382.72 KB
Description:
N-channel enhancement mode power mosfet.
Datasheet Details
HM3400G Features
* VDS = 30V,ID = 2.0A RDS(ON) = 100mΩ (Typ) @ VGS=2.5V RDS(ON) = 75mΩ (Typ) @ VGS=4.5V RDS(ON) = 65mΩ (Typ) @ VGS=10V
* High Power and current handing capability
* Lead free product is acquired
* Surface Mount Package Application
* PWM applications
* Load switch
* Power mana
Datasheet Details
HM3400G
H&M Semiconductor
382.72 KB
N-channel enhancement mode power mosfet.
