HM1583 Datasheet - H&M Semiconductor

HM1583 3A 380KHz 23V Buck DC to DC Converter

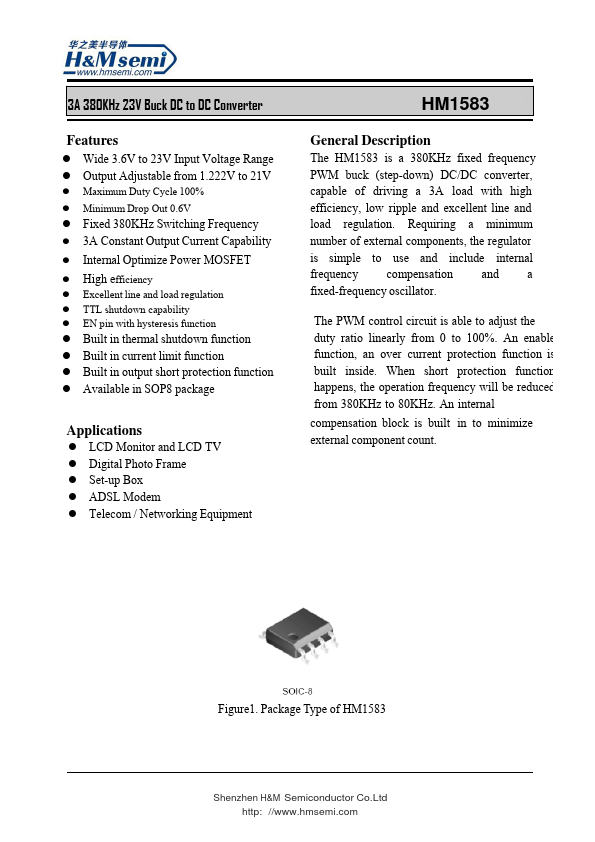

The HM1583 is a 380KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensa.

HM1583 Features

* Wide 3.6V to 23V Input Voltage Range

* Output Adjustable from 1.222V to 21V

* Maximum Duty Cycle 100%

* Minimum Drop Out 0.6V

* Fixed 380KHz Switching Frequency

* 3A Constant Output Current Capability

* Internal Optimize Power MOSFET

* High efficiency

* Excellen

HM1583 Datasheet (248.17 KB)

HM1583 Datasheet Preview — Preview of HM1583 PDF

Datasheet Details

Part number:

HM1583

Manufacturer:

H&M Semiconductor

File Size:

248.17 KB

Description:

3a 380khz 23v buck dc to dc converter.
