HM1530 3A 380KHz 18V Buck DC to DC Converter

The HM1530 is a 380KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensa.

HM1530 Features

* Wide 3.6V to 18V Input Voltage Range

* Output Adjustable from 0.8V to 16V

* Maximum Duty Cycle 100%

* Minimum Drop Out 0.6V

* Fixed 380KHz Switching Frequency

* 3A Constant Output Current Capability

* Internal Optimize Power MOSFET

* High efficiency

* Excellent

HM1530 Datasheet (237.99 KB)

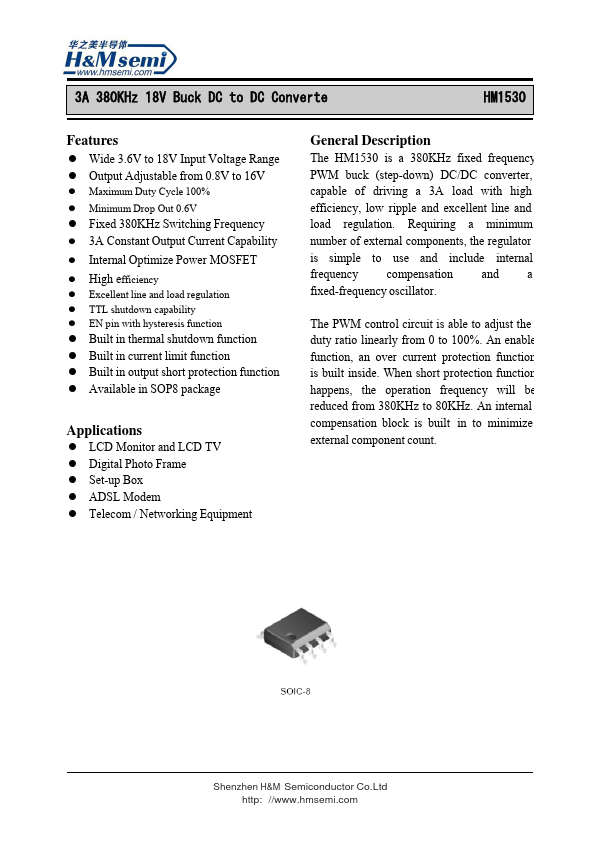

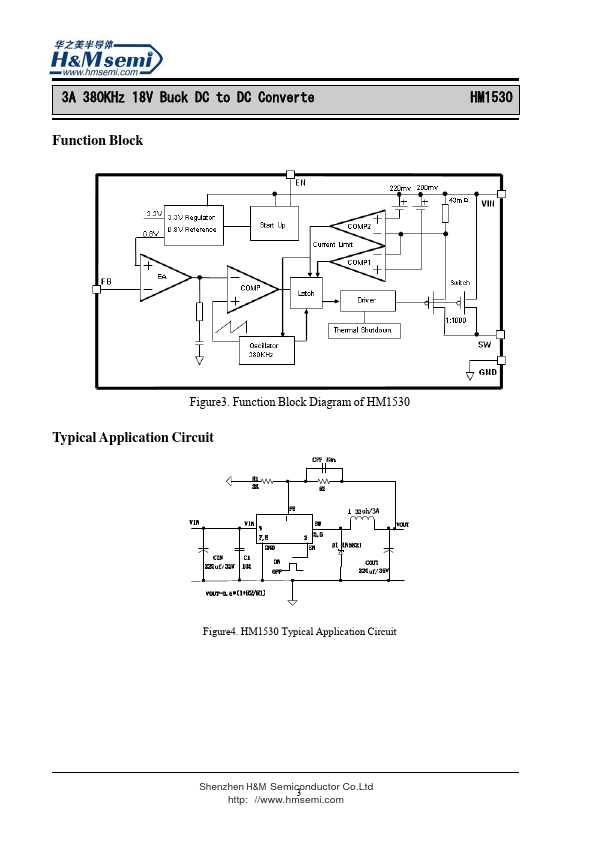

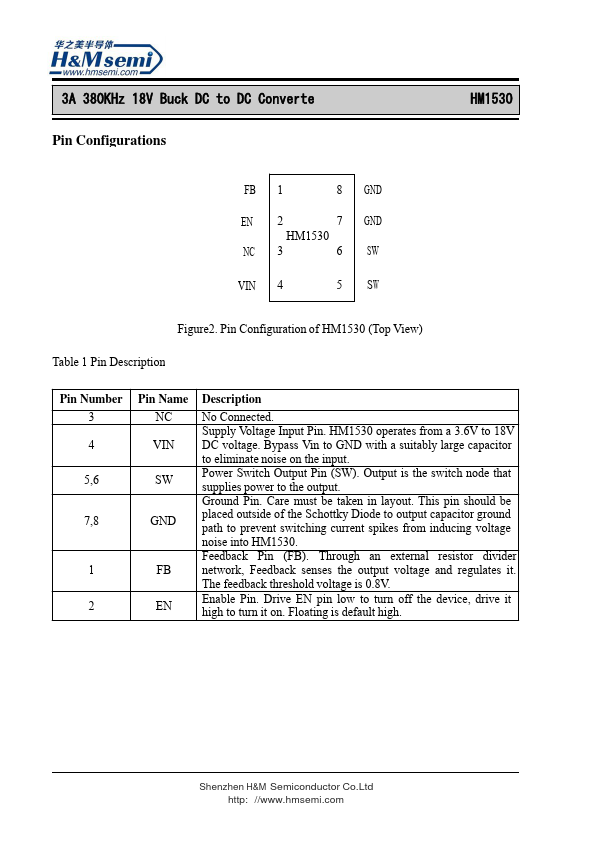

HM1530 Datasheet Preview — Preview of HM1530 PDF

Datasheet Details

Part number:

HM1530

Manufacturer:

H&M Semiconductor

File Size:

237.99 KB

Description:

3a 380khz 18v buck dc to dc converter.
