2SA1162 - Silicon Epitaxial Planar Transistor

Features

  • Excellent hFE linearity.
  • Commplementary to 2SC2712.
  • High voltage and high current.
  • Low noise. Pb Lead-free 2SA1162.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SA1162 - Silicon PNP Transistor (Toshiba Semiconductor)
  • 2SA1162 - PNP Transistor (HOTTECH)
  • 2SA1162 - Silicon PNP Epitaxial Type Transistor (Bruckewell)
  • 2SA1162 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • 2SA1162 - Plastic-Encapsulated Transistors (TRANSYS Electronics Limited)
  • 2SA1162 - Silicon PNP Transistor (Kexin)
  • 2SA1162 - TRANSISTOR (Jin Yu Semiconductor)
  • 2SA1162 - PNP Silicon Transistor (SeCoS)
  • 2SA1162 - PNP EPITAXIAL SILICON TRANSISTOR (WEJ)
  • 2SA1160 - Silicon PNP Epitaxial Type Transistor (Toshiba Semiconductor)
Other Datasheets by GME
  • 2SA1179 - Silicon Epitaxial Planar Transistor
  • 2SA1012 - PNP Epitaxial Silicon Transistor
  • 2SA1015 - Silicon Epitaxial Planar Transistor
  • 2SA1036 - Silicon Epitaxial Planar Transistor
  • 2SA1037 - Silicon Epitaxial Planar Transistor
  • 2SA1201 - Plastic-Encapsulate Transistors
  • 2SA1203 - PNP Transistor
  • 2SA1204 - Silicon Planar Epitaxial Transistor

Full PDF Text Transcription

Click to expand full text

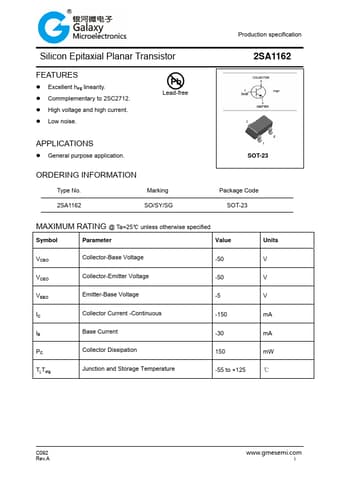

Production specification Silicon Epitaxial Planar Transistor FEATURES  Excellent hFE linearity.  Commplementary to 2SC2712.  High voltage and high current.  Low noise. Pb Lead-free 2SA1162 APPLICATIONS  General purpose application. ORDERING INFORMATION Type No. Marking 2SA1162 SO/SY/SG SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage -50 VCEO VEBO Collector-Emitter Voltage Emitter-Base Voltage -50 -5 IC Collector Current -Continuous -150 IB Base Current PC Collector Dissipation -30 150 Tj,Tstg Junction and Storage Temperature -55 to +125 Units V V V mA mA mW ℃ C092 Rev.A www.gmesemi.
