TOKO
TOKO

TK11043 Datasheet Preview

TK11043 Datasheet

TEMPERATURE SENSOR IC

No Preview Available !

TK11043 pdf

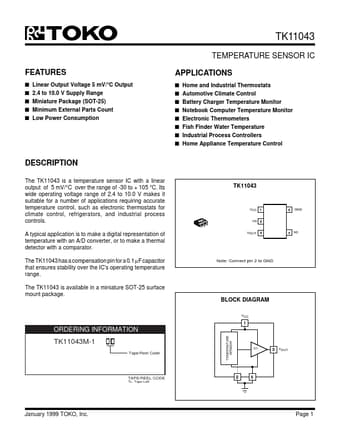

FEATURES
s Linear Output Voltage 5 mV/°C Output
s 2.4 to 10.0 V Supply Range
s Miniature Package (SOT-25)
s Minimum External Parts Count
s Low Power Consumption
TK11043
TEMPERATURE SENSOR IC
APPLICATIONS
s Home and Industrial Thermostats
s Automotive Climate Control
s Battery Charger Temperature Monitor
s Notebook Computer Temperature Monitor
s Electronic Thermometers
s Fish Finder Water Temperature
s Industrial Process Controllers
s Home Appliance Temperature Control
DESCRIPTION
The TK11043 is a temperature sensor IC with a linear
output of 5 mV/°C over the range of -30 to + 105 °C. Its
wide operating voltage range of 2.4 to 10.0 V makes it
suitable for a number of applications requiring accurate
temperature control, such as electronic thermostats for
climate control, refrigerators, and industrial process
controls.
A typical application is to make a digital representation of
temperature with an A/D converter, or to make a thermal
detector with a comparator.
The TK11043 has a compensation pin for a 0.1 µF capacitor
that ensures stability over the IC's operating temperature
range.
The TK11043 is available in a miniature SOT-25 surface
mount package.
ORDERING INFORMATION
TK11043M-1
Tape/Reel Code
TK11043
VCC
HS01S
VOUT
GND
NC
Note: Connect pin 2 to GND
BLOCK DIAGRAM
VCC
X1 VOUT
TAPE/REEL CODE
TL: Tape Left
January 1999 TOKO, Inc.
Page 1



TOKO
TOKO

TK11043 Datasheet Preview

TK11043 Datasheet

TEMPERATURE SENSOR IC

No Preview Available !

TK11043 pdf
TK11043
ABSOLUTE MAXIMUM RATINGS
Supply Voltage ......................................................... 12 V
Operating Voltage .......................................... 2.4 to 10 V
Power Dissipation (Note 1) ................................ 150 mW
Junction Temperature ........................................... 150 °C
Storage Temperature Range ................... -55 to +150 °C
Operating Temperature Range ................. -30 to +105 °C
Lead Soldering Temperature (10 s) ...................... 235 °C
TK11043 ELECTRICAL CHARACTERISTICS
Test Conditions: VCC = 3.0 V, IOUT = 0 µA, TA = 25 °C, unless otherwise specified.
SYMBOL
PARAMETER
TEST CONDITIONS
MIN TYP
VOUT
Output Voltage
TC
Line Reg
Load Reg
I
CC
IOUT
Temperature Coefficient
Line Regulation
Load Regulation
Supply Current
Output Current
TA = 25 ° C
TA = 85 ° C
TA = -30 ° C
TA = 25 ° C to 85 ° C
VCC = 3 to 10 V
IOUT = 0 to 100 µA
T = 25 ° C
A
VOUT 15 mV
1.487
1.784
4.50
-12
0
1.502
1.804
1.225
5.04
2
2
110
Note 1: Power dissipation is 150 mW when mounted as recommended. Derate at 1.2 mW/°C for operation above 25 °C.
MAX
1.517
1.824
5.50
12
12
180
400
UNITS
V
V
V
mV/° C
mV
mV
µA
µA
1.905
1.804
1.628
1.502
1.376
1.275
-20 0 25 50 85 105
AMBIENT TEMPERATURE (°C)
FIGURE 1. OUTPUT CHARACTERISTICS
Page 2
January 1999 TOKO, Inc.
