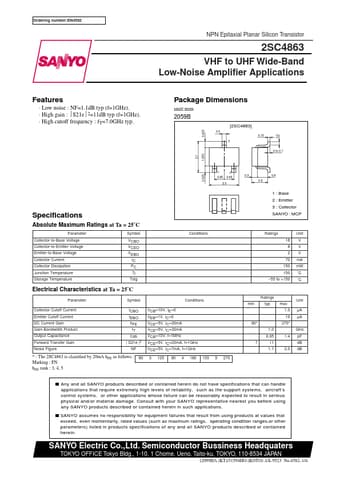

Ordering number:EN4582
NPN Epitaxial Planar Silicon Transistor
2SC4863
VHF to UHF Wide-Band
Low-Noise Amplifier Applications
Features
· Low noise : NF=1.1dB typ (f=1GHz).
· High gain : S21e2=11dB typ (f=1GHz).
· High cutoff frequency : fT=7.0GHz typ.
Package Dimensions
unit:mm
2059B
[2SC4863]
0.3
3
0.15
0 to 0.1
12
0.65 0.65
2.0
Specifications
Absolute Maximum Ratings at Ta = 25˚C
Parameter
Symbol
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Dissipation
Junction Temperature
Storage Temperature
VCBO
VCEO
VEBO
IC
PC
Tj
Tstg
Electrical Characteristics at Ta = 25˚C
Conditions
Parameter
Symbol
Conditions
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Forward Transfer Gain
Noise Figure
ICBO
IEBO
hFE
fT
Cob
| S21e |2
NF
VCB=10V, IE=0
VEB=1V, IC=0
VCE=5V, IC=20mA
VCE=5V, IC=20mA
VCB=10V, f=1MHz
VCE=5V, IC=20mA, f=1GHz
VCE=5V, IC=7mA, f=1GHz
* : The 2SC4863 is classified by 20mA hFE as follows : 60 3 120
Marking : FN
hFE rank : 3, 4, 5
90 4 180 135 5 270
0.3 0.6
0.9
1 : Base
2 : Emitter
3 : Collector
SANYO : MCP
Ratings
16
8
2
70
150
150
–55 to +150
Unit
V
V
V
mA
mW
˚C
˚C
Ratings
min typ
60*
7.0
0.95
7 11
1.1
max
1.0
10
270*
1.4
2.0
Unit
µA
µA
GHz
pF
dB
dB
