PE42447 - SP4T RF Switch

pSemi

General Description

The PE42447 is a HaRP™ technology-enhanced SP4T RF switch that supports a frequency range from 10 MHz to 8 GHz.

Key Features

Low insertion loss:.
0.4 dB at 2.7 GHz typical.
0.48 dB at 3.8 GHz typical.
High linearity IIP3: 85 dBm.
High power handling: 40-dBm RMS, 50-dBm peak.
Operating temperature: +125 °C.
Packaging: 20-lead 4 × 4 mm LGA.

📥 Download Datasheet

PE42447 sp4t rf switch by pSemi - Datasheet Preview

Datasheet Details

Part number	PE42447
Manufacturer	pSemi
File Size	2.80 MB
Description	SP4T RF Switch
Datasheet	PE42447 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
PE4244	SPDT UltraCMOS RF Switch	Peregrine Semiconductor
PE42440	RF Switch	Peregrine Semiconductor
PE42441	SP4T RF Switch	Peregrine Semiconductor
PE42442	UltraCMOS SP4T RF Switch	Peregrine Semiconductor
PE42443	SP4T RF Switch	Peregrine Semiconductor

Other Datasheets by pSemi

Part Number	Description
PE42440	SP4T RF Switch
PE42444	SP4T RF Switch
PE42445	High Isolation UltraCMOS SP4T RF Switch
PE42448	SP4T RF Switch
PE42420	SPDT RF Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

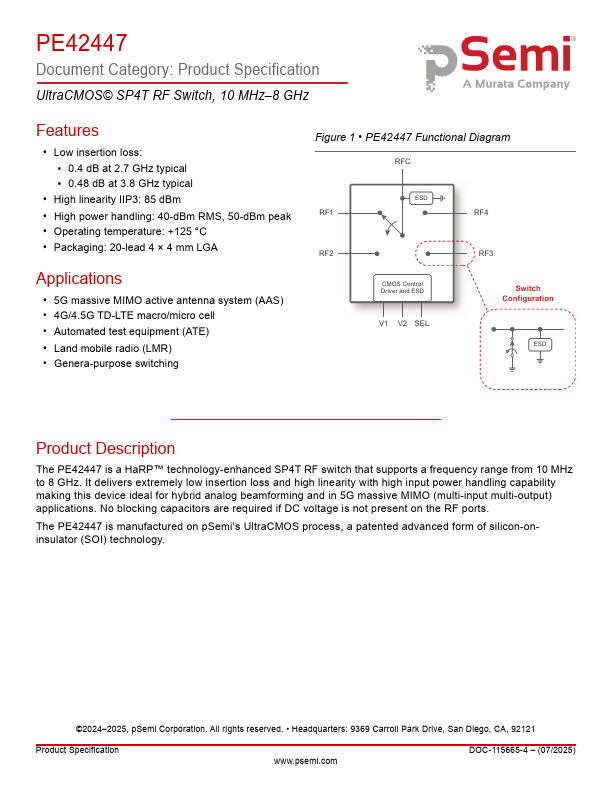

PE42447 Document Category: Product Specification UltraCMOS© SP4T RF Switch, 10 MHz–8 GHz Features • Low insertion loss: ▪ 0.4 dB at 2.7 GHz typical ▪ 0.48 dB at 3.8 GHz typical • High linearity IIP3: 85 dBm • High power handling: 40-dBm RMS, 50-dBm peak • Operating temperature: +125 °C • Packaging: 20-lead 4 × 4 mm LGA Applications • 5G massive MIMO active antenna system (AAS) • 4G/4.5G TD-LTE macro/micro cell • Automated test equipment (ATE) • Land mobile radio (LMR) • Genera-purpose switching Figure 1 • PE42447 Functional Diagram RFC ESD RF1 RF4 RF2 CMOS Control Driver and ESD V1 V2 SEL RF3 Switch Configuration ESD Product Description The PE42447 is a HaRP™ technology-enhanced SP4T RF switch that supports a frequency range from 10 MHz to 8 GHz.
