PE423211 - SPDT RF Switch

General Description

The PE423211 is a HaRP™ technology-enhanced reflective SPDT RF switch designed for use in high-performance ISM, WLAN 802.11 a/b/g/n/ac/ax, Bluetooth and UWB applications supporting bandwidths up to 10.6 GHz.

Key Features

  • AEC-Q100 Grade 2-qualified.
  • Broadband frequency support: 0.3 to 10.6 GHz.
  • Suitable for ISM band, Bluetooth®, 802.11 a/b/g/n/ ac/ax and ultra-wideband (UWB).
  • Low power consumption of 90 nA.
  • Low insertion loss.
  • 0.4 dB @ 6 GHz.
  • 0.6 dB @ 8.5 GHz.
  • 0.7 dB @ 10.6 GHz.
  • High isolation.
  • 27 dB @ 6 GHz.
  • 18 dB @ 8.5 GHz.
  • 18 dB @ 10.6 GHz.
  • P1dB = +24 dBm.
  • Switching time = 100 ns.
  • Operating temperatu.

📥 Download Datasheet

Datasheet Details

Part number PE423211
Manufacturer pSemi
File Size 2.11 MB
Description SPDT RF Switch
Datasheet download datasheet PE423211 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PE4232 SPST CATV UltraCMOS Switch Peregrine Semiconductor
PE4230 SPDT High Power UltraCMOS RF Switch Peregrine Semiconductor
PE4231 SPDT High Power UltraCMOS Peregrine Semiconductor
PE423422 SPDT RF Switch Peregrine Semiconductor
PE4235 SPDT UltraCMOS RF Switch DC Peregrine Semiconductor

Other Datasheets by pSemi

Part Number Description
PE423422 SPDT RF Switch
PE423641 SP4T RF Switch
PE42420 SPDT RF Switch
PE42421 SPDT RF Switch
PE42427 SPDT RF Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

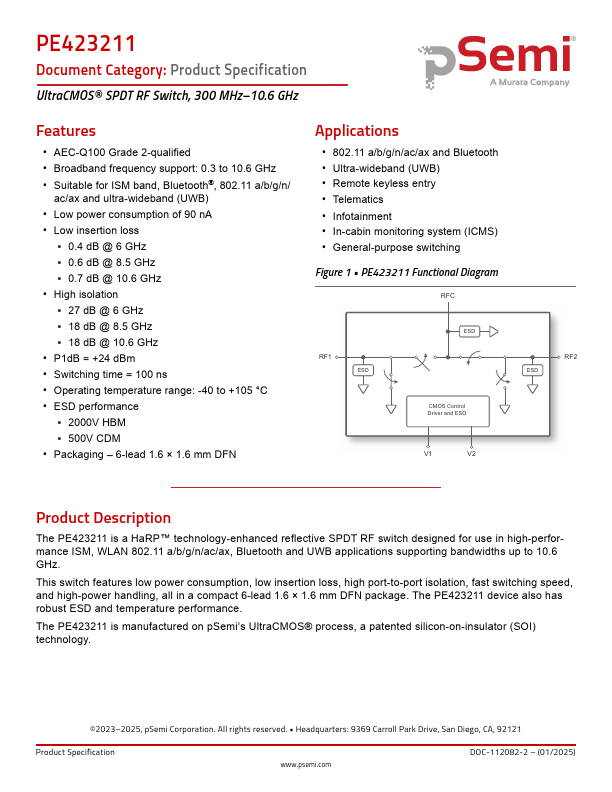

PE423211 Document Category: Product Specification UltraCMOS® SPDT RF Switch, 300 MHz–10.6 GHz Features • AEC-Q100 Grade 2-qualified • Broadband frequency support: 0.3 to 10.6 GHz • Suitable for ISM band, Bluetooth®, 802.11 a/b/g/n/ ac/ax and ultra-wideband (UWB) • Low power consumption of 90 nA • Low insertion loss ▪ 0.4 dB @ 6 GHz ▪ 0.6 dB @ 8.5 GHz ▪ 0.7 dB @ 10.6 GHz • High isolation ▪ 27 dB @ 6 GHz ▪ 18 dB @ 8.5 GHz ▪ 18 dB @ 10.6 GHz • P1dB = +24 dBm • Switching time = 100 ns • Operating temperature range: -40 to +105 °C • ESD performance ▪ 2000V HBM ▪ 500V CDM • Packaging – 6-lead 1.6 × 1.6 mm DFN Applications • 802.
