PMEG200G30ELP - 200V 3A Silicon Germanium rectifier

General Description

Silicon Germanium (SiGe) rectifier encapsulated in a CFP5 (SOD128) small and flat lead SurfaceMounted Device (SMD) plastic package.

2.

Key Features

  • Features.
  • Low forward voltage and low Qrr.
  • Extremely low leakage current.
  • Thermal stability up to 175 °C junction temperature.
  • Fast and smooth switching.
  • Low parasitic capacitance.
  • AEC-Q101 qualified Benefits.
  • Excellent efficiency.
  • Extraordinary safe operating area.
  • Minimal impact on Electro-Magnetic Compatibility (EMC) allowing simplified certification 3.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PMEG2002AESF 0.2 A low VF MEGA Schottky barrier rectifier NXP
PMEG2005AEA Very low VF MEGA Schottky barrier rectifiers Philips
PMEG2005AEL RECTIFIER DIODE NXP
PMEG2005AEV (PMEGx005AEV) Very low VF MEGA Schottky barrier rectifiers NXP Semiconductors
PMEG2005CT dual MEGA Schottky barrier rectifier NXP

Other Datasheets by Nexperia

Part Number Description
PMEG2002AESF MEGA Schottky barrier rectifier
PMEG2002AESFB MEGA Schottky barrier rectifier
PMEG2002ESF MEGA Schottky barrier rectifier
PMEG2005AEA MEGA Schottky barrier rectifier
PMEG2005AEA-Q 0.5A very low VF Schottky barrier rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

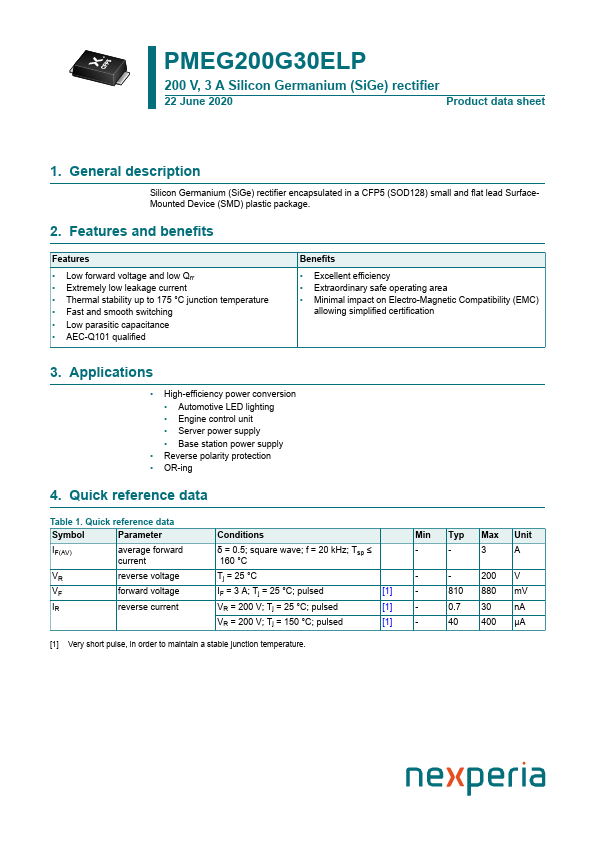

PMEG200G30ELP 200 V, 3 A Silicon Germanium (SiGe) rectifier 22 June 2020 Product data sheet 1. General description Silicon Germanium (SiGe) rectifier encapsulated in a CFP5 (SOD128) small and flat lead SurfaceMounted Device (SMD) plastic package. 2. Features and benefits Features • Low forward voltage and low Qrr • Extremely low leakage current • Thermal stability up to 175 °C junction temperature • Fast and smooth switching • Low parasitic capacitance • AEC-Q101 qualified Benefits • Excellent efficiency • Extraordinary safe operating area • Minimal impact on Electro-Magnetic Compatibility (EMC) allowing simplified certification 3.
