PESD5V0V1BL - Very low capacitance bidirectional ESD protection diode

General Description

Very low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode in an SOD882 leadless ultra-small Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients.

2.

Key Features

  • Bidirectional ESD protection of one line.
  • Very low diode capacitance: Cd = 11 pF.
  • Max. peak pulse power: PPPM = 45 W.
  • Low clamping voltage: VCL = 12.5 V.
  • Ultra low leakage current: IRM < 1 nA.
  • ESD protection up to 30 kV.
  • IEC 61000-4-2; level 4 (ESD).
  • IEC 61000-4-5 (surge); IPPM = 4.8 A.
  • AEC-Q101 qualified 3.

📥 Download Datasheet

Datasheet Details

Part number PESD5V0V1BL
Manufacturer Nexperia
File Size 228.58 KB
Description Very low capacitance bidirectional ESD protection diode
Datasheet download datasheet PESD5V0V1BL Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PESD5V0V1BL Very low capacitance bidirectional ESD protection diodes NXP Semiconductors
PESD5V0V1BL TVS Diode Leiditech
PESD5V0V1BLD Very low capacitance bidirectional ESD protection diode NXP
PESD5V0V1BA Very low capacitance bidirectional ESD protection diodes NXP Semiconductors
PESD5V0V1BB Very low capacitance bidirectional ESD protection diodes NXP Semiconductors

Other Datasheets by Nexperia

Part Number Description
PESD5V0V1BLD Very low capacitance bidirectional ESD protection diode
PESD5V0V1BA Very low capacitance bidirectional ESD protection diode
PESD5V0V1BB Very low capacitance bidirectional ESD protection diode
PESD5V0V1BCSF Ultra low profile bidirectional very low capacitance ESD protection diode
PESD5V0V1BSF Ultra low profile bidirectional very low capacitance ESD protection diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

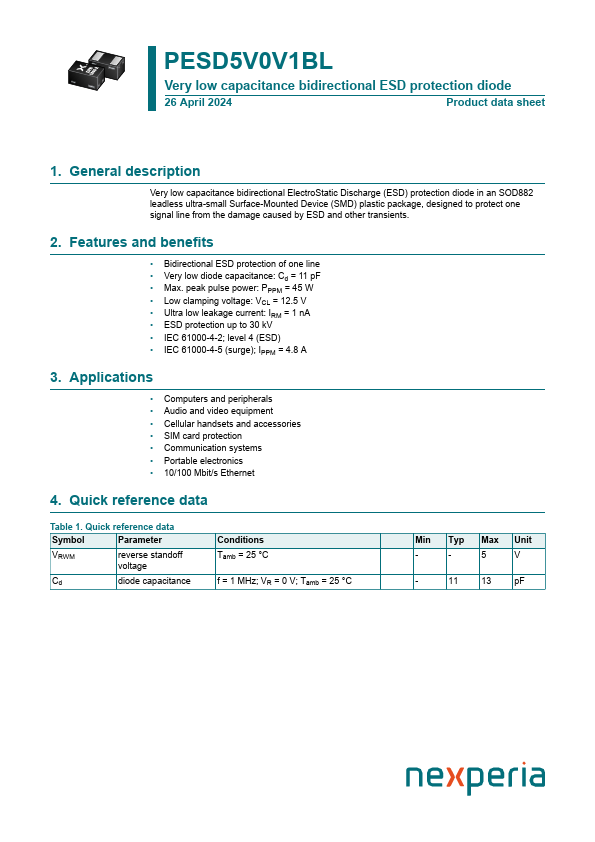

PESD5V0V1BL Very low capacitance bidirectional ESD protection diode 5 July 2018 Product data sheet 1. General description Very low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode in an SOD882 leadless ultra-small Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients. 2. Features and benefits • Bidirectional ESD protection of one line • Very low diode capacitance: Cd = 11 pF • Max. peak pulse power: PPPM = 45 W • Low clamping voltage: VCL = 12.5 V • Ultra low leakage current: IRM < 1 nA • ESD protection up to 30 kV • IEC 61000-4-2; level 4 (ESD) • IEC 61000-4-5 (surge); IPPM = 4.8 A • AEC-Q101 qualified 3.
