2PB709ART - 45V 100mA PNP general-purpose transistor

Nexperia

General Description

PNP general-purpose transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

NPN complement: 2PD601ART.

Key Features

I General-purpose transistor I Small SMD plastic package 1.3.

📥 Download Datasheet

2PB709ART 45v 100ma pnp general-purpose transistor by Nexperia - Datasheet Preview

Datasheet Details

Part number	2PB709ART
Manufacturer	Nexperia
File Size	599.85 KB
Description	45V 100mA PNP general-purpose transistor
Datasheet	2PB709ART Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2PB709ART	100mA PNP general-purpose transistor	NXP
2PB709A	PNP general purpose transistor	NXP
2PB709A	PNP General Purpose Transistor	Kexin
2PB709AW	PNP Transistor	NXP
2PB709AW	PNP Transistor	Kexin

Other Datasheets by Nexperia

Part Number	Description
2PB709ARL	PNP general-purpose transistors
2PB709ASL	PNP general-purpose transistors
2PB709BRL	PNP general-purpose transistors
2PB709BSL	PNP general-purpose transistors
2PB710ASL-Q	500mA PNP general-purpose transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

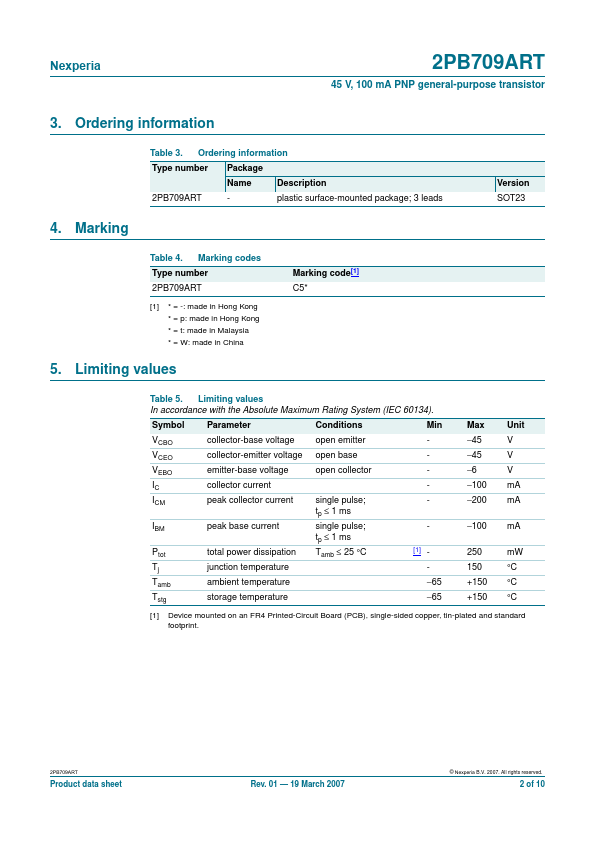

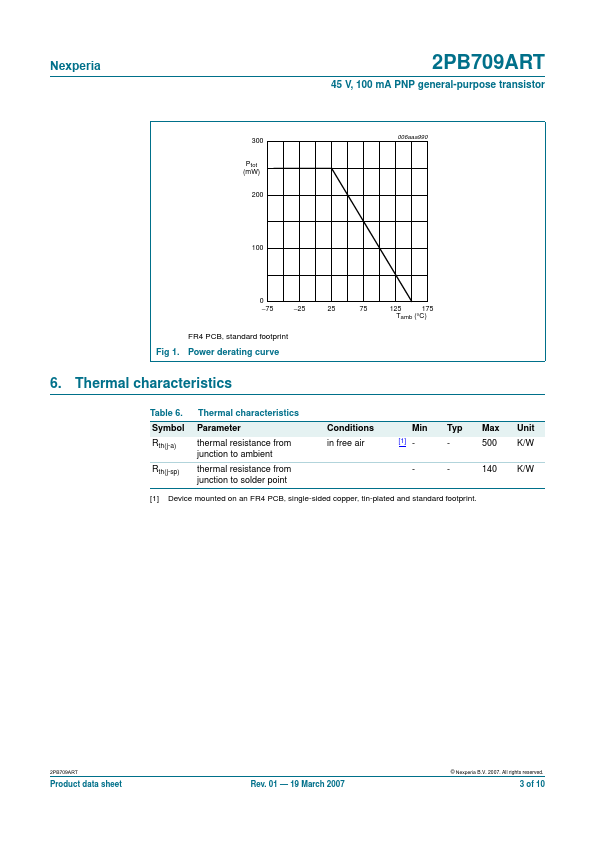

2PB709ART 45 V, 100 mA PNP general-purpose transistor Rev. 01 — 19 March 2007 Product data sheet 1. Product proﬁle 1.1 General description PNP general-purpose transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. NPN complement: 2PD601ART. 1.2 Features I General-purpose transistor I Small SMD plastic package 1.3 Applications I General-purpose switching and ampliﬁcation 1.4 Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = −10 V; IC = −2 mA Min Typ Max Unit - - −45 V - - −100 mA 210 - 340 2. Pinning information Table 2.
