SN65176B - Differential Bus Transceivers

Datasheet Summary

Description

The SN65176B and SN75176B differential bus transceivers are designed for bidirectional data communication on multipoint bus transmission lines.

They are designed for balanced transmission lines and meet ANSI Standards TIA/EIA-422-B and TIA/ EIA-485-A and ITU Recommendations V.11 and X.27.

Features

  • Bidirectional transceivers.
  • Meet or exceed the requirements of ANSI standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27.
  • Designed for multipoint transmission on long bus lines in noisy environments.
  • 3-State driver and receiver outputs.
  • Individual driver and receiver enables.
  • Wide positive and negative input/output bus voltage ranges.
  • ± 60-mA Maximum driver output capability.
  • Thermal shutdown prot.

📥 Download Datasheet

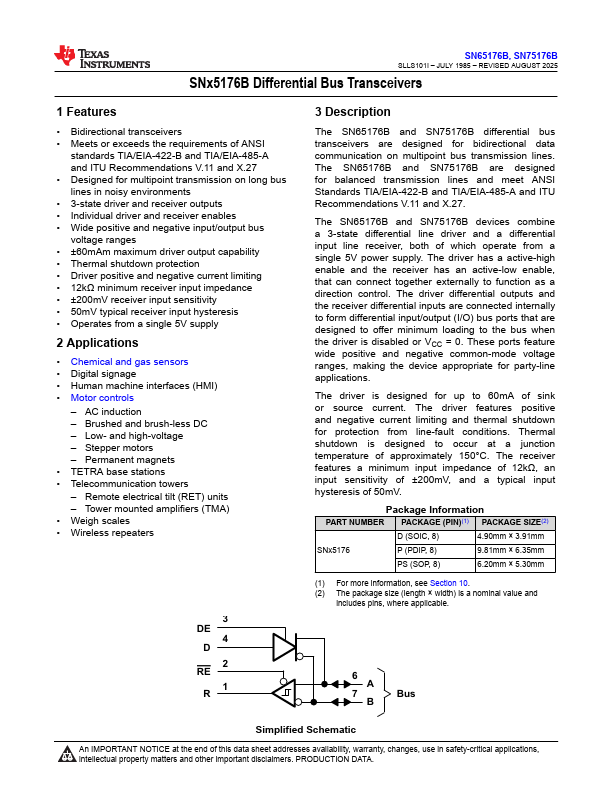

Datasheet preview – SN65176B

Datasheet Details

Part number SN65176B
Manufacturer Texas Instruments
File Size 1.56 MB
Description Differential Bus Transceivers
Datasheet download datasheet SN65176B Datasheet

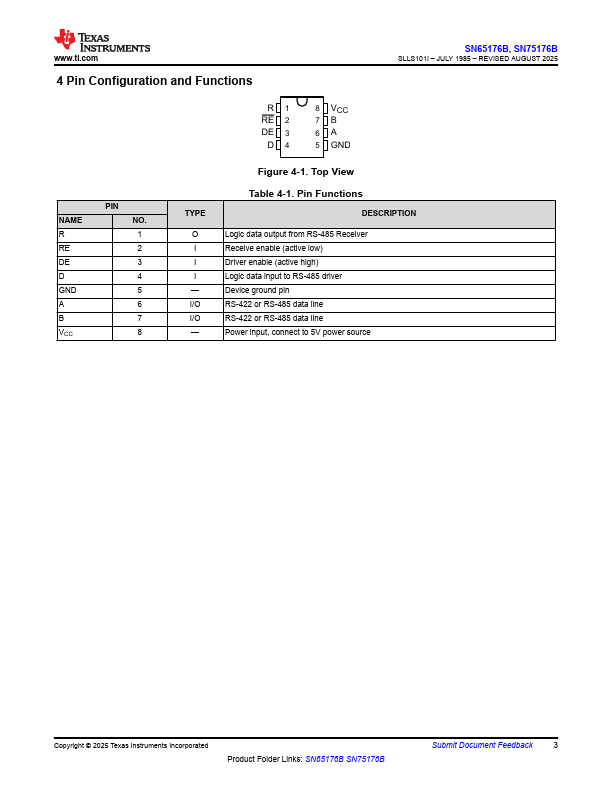

Additional preview pages of the SN65176B datasheet.
