REF3133-Q1 - SOT-23 Series Voltage Reference

This page provides the datasheet information for the REF3133-Q1, a member of the REF3112-Q1 SOT-23 Series Voltage Reference family.

Description

The REF31xx-Q1 is a family of precision, low power, low dropout, series voltage references available in the tiny 3-pin SOT-23 package.

The REF31xx-Q1 small size and low power consumption (100 μA typical) make it ideal for portable and battery-powered applications.

Features

  • 1 AEC-Q100 Qualified With the Following Results:.
  • Device TA Range:.
  • 40°C to 125°C.
  • Device HBM ESD Classification Level H1C.
  • Device CDM ESD Classification Level C4A.
  • High Accuracy: 0.2% Maximum.
  • Excellent Specified Drift Performance:.
  • 20 ppm/°C (Maximum) from.
  • 40°C to +125°C.
  • High Output Current: ±10 mA.
  • Low Dropout: 5 mV.
  • Low IQ: 115 µA Maximum.
  • Low Noise: 17 µVp-p/V.
  • No Ou.

📥 Download Datasheet

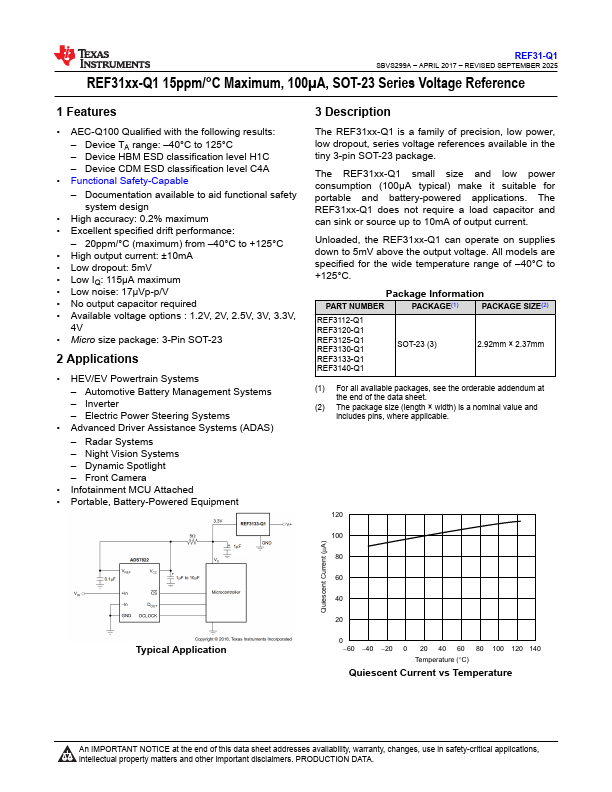

Datasheet preview – REF3133-Q1
