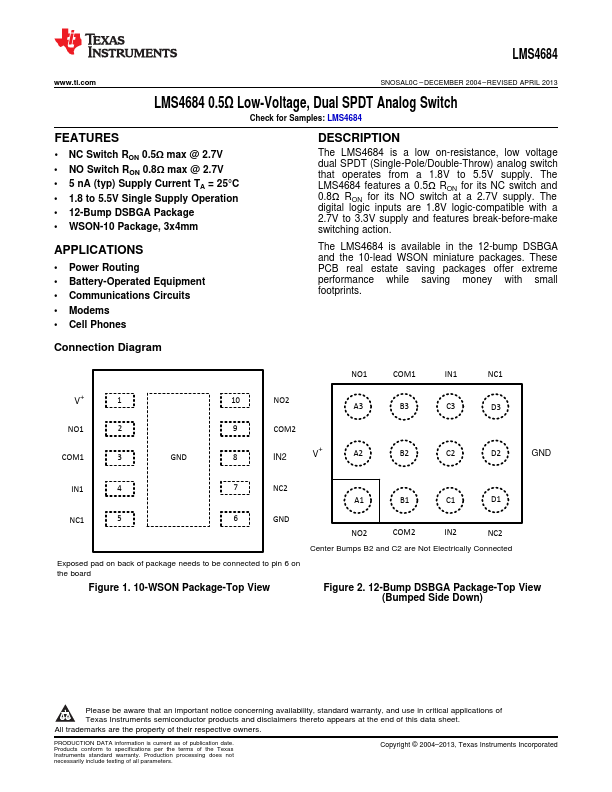

LMS4684
FEATURES
- 2 NC Switch RON 0.5Ω max @ 2.7V
- NO Switch RON 0.8Ω max @ 2.7V
- 5 n A (typ) Supply Current TA = 25°C
- 1.8 to 5.5V Single Supply Operation
- 12-Bump DSBGA Package
- WSON-10 Package, 3x4mm
APPLICATIONS
- Power Routing
- Battery-Operated Equipment
- munications Circuits
- Modems
- Cell Phones
DESCRIPTION
The LMS4684 is a low on-resistance, low voltage dual SPDT (Single-Pole/Double-Throw) analog switch that operates from a 1.8V to 5.5V supply. The LMS4684 features a 0.5Ω RON for its NC switch and 0.8Ω RON for its NO switch at a 2.7V supply. The digital logic inputs are 1.8V logic-patible with a 2.7V to 3.3V supply and features break-before-make switching action.
The LMS4684 is available in the 12-bump DSBGA and the 10-lead WSON miniature packages. These PCB real estate saving packages offer extreme performance while saving money with small footprints.

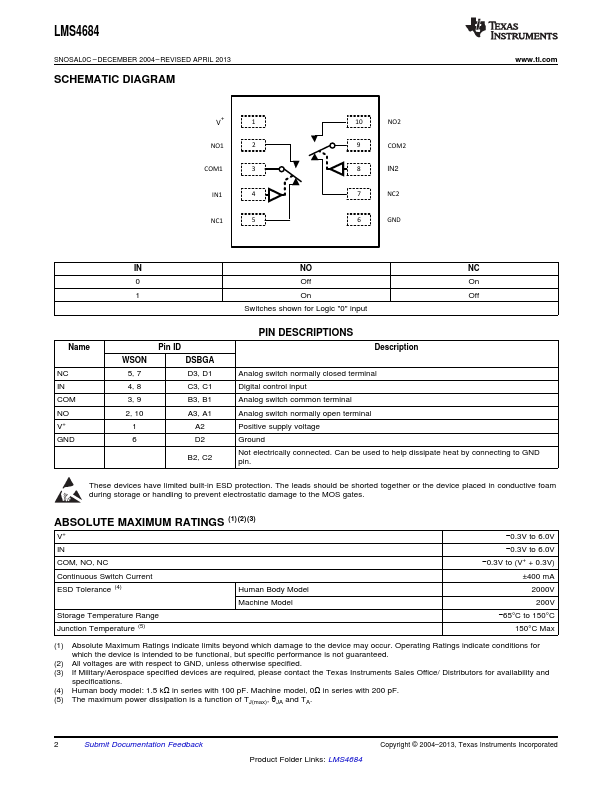

Connection Diagram
V+
NO1
NO1
IN1
NC1
NO2
A3
B3
C3
D3
IN2
V+
A2
B2
C2...
