LMK6D - High-Performance BAW Oscillator

Download the LMK6D datasheet PDF. This datasheet also covers the LMK6C variant, as both devices belong to the same high-performance baw oscillator family and are provided as variant models within a single manufacturer datasheet.

General Description

Texas Instruments' Bulk-Acoustic Wave (BAW) is a micro-resonator technology that enables integration of high-precision BAW resonator directly into packages with ultra-low jitter clock circuitry.

BAW is fully designed and manufactured at TI factories like other silicon-based fabrication processes.

Key Features

  • High-performance differential and single-ended output Oscillator, supporting any fixed frequency within the below range:.
  • LMK6D: 1MHz to 400MHz, LVDS output.
  • LMK6H: 1MHz to 400MHz, HCSL output.
  • LMK6P: 1MHz to 400MHz, LVPECL output.
  • LMK6C: 1MHz to 200MHz, LVCMOS output.
  • Ultra-low jitter:.
  • LMK6D/LMK6H/LMK6P: 100fs typical / 125fs maximum RMS jitter at 156.25MHz (12kHz to 20MHz).
  • LMK6C: 350fs typical / 500fs maximum RMS jitter.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LMK6C-etcTI.pdf) that lists specifications for multiple related part numbers.

Other Datasheets by Texas Instruments

Part Number Description
LMK60A0-148351 High-Performance Low Jitter Oscillator
LMK60A0-148M High-Performance Low Jitter Oscillator
LMK60E0-156257 High-Performance Low Jitter Oscillator
LMK60E0-156M High Performance Low Jitter Oscillator
LMK60E0-212M High Performance Low Jitter Oscillator
LMK60E2-100M High Performance Low Jitter Oscillator
LMK60E2-125M High Performance Low Jitter Oscillator
LMK60E2-150M High-Performance Low Jitter Oscillator
LMK60E2-156M High-Performance Low Jitter Oscillator
LMK60E2-156M High Performance Low Jitter Oscillator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

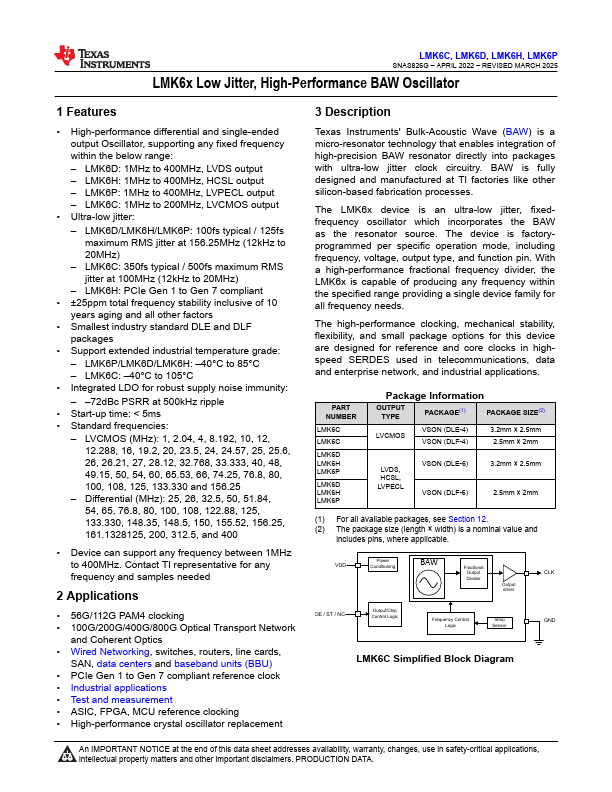

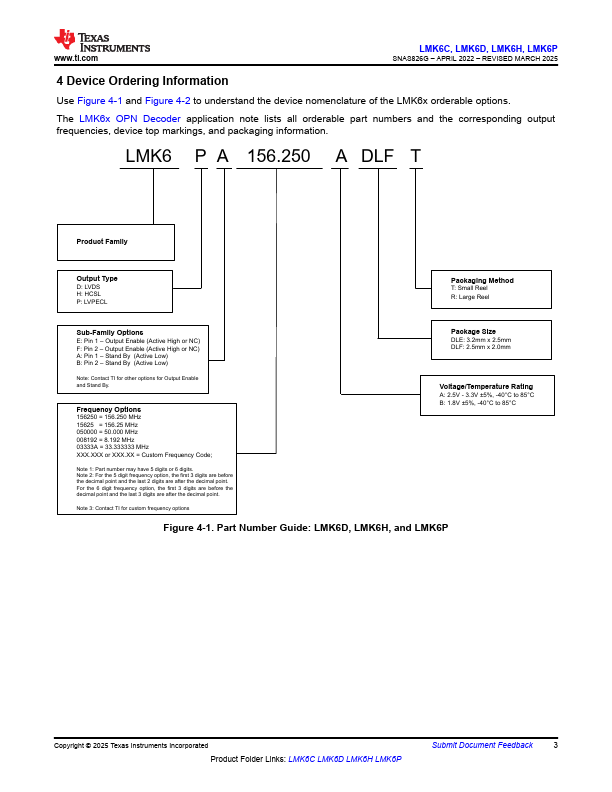

LMK6C, LMK6D, LMK6H, LMK6P SNAS826E – APRIL 2022 – REVISED APRIL 2024 LMK6x Low Jitter, High-Performance BAW Oscillator 1 Features • High-performance differential and single-ended output Oscillator, supporting any fixed frequency within the below range: – LMK6D: 1MHz to 400MHz, LVDS output – LMK6H: 1MHz to 400MHz, HCSL output – LMK6P: 1MHz to 400MHz, LVPECL output – LMK6C: 1MHz to 200MHz, LVCMOS output • Ultra-low jitter: – LMK6D/LMK6H/LMK6P: 100fs typical / 125fs maximum RMS jitter at 156.
